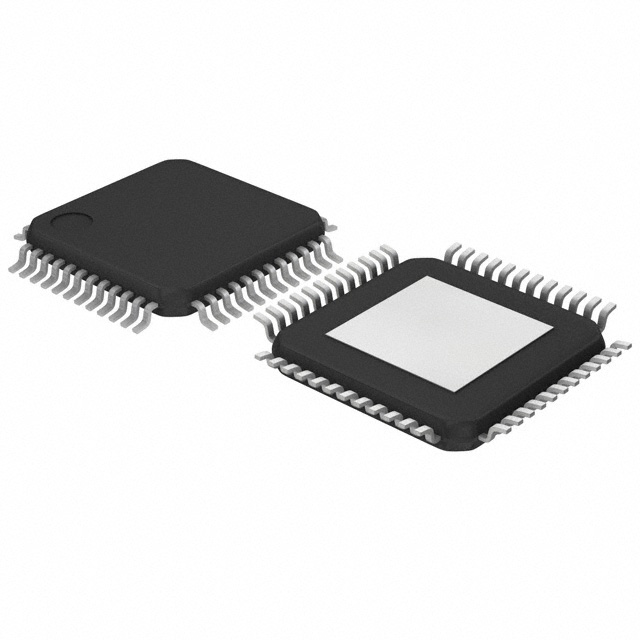

The STP24DP05BTR is a monolithic, low-voltage, low current power 24-bit shift register designed for LED panel displays. The device contains an 8 x 3-bit serial-IN, parallel-OUT shift register that feeds a 8 x 3-bit D-type storage register. In the output stage, twenty four regulated current sources were designed to provide 5-80 mA constant current to drive the LEDs.

Features

Low-voltage power supply down to 3 V

8 x 3 constant current output channels

Adjustable output current through external resistors

Short and open output error detection

Serial data IN/parallel data OUT

Shift register data flow register control

Accepts 3.3 V and 5 V micro driver

Output current: 5-80 mA

25 MHz clock frequency

High thermal efficiency package
