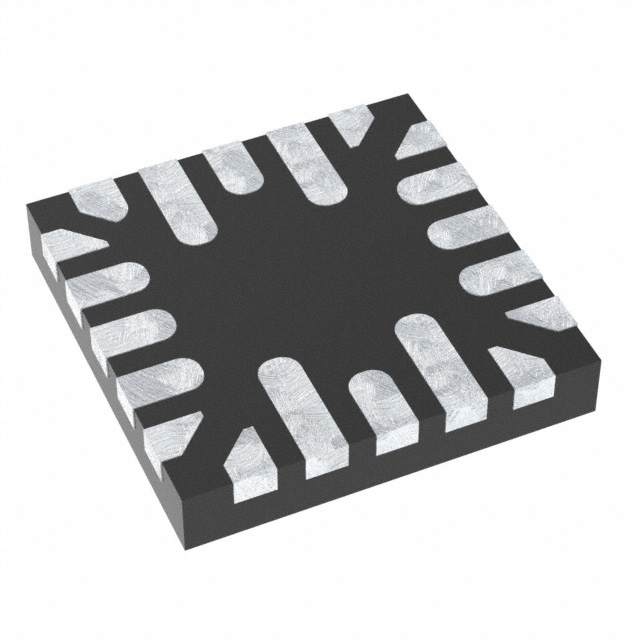

The LED1202QTR is a 12-channel low quiescent current LED driver; it guarantees 5 V output driving capability and each channel is able to provide up to 20 mA with a headroom voltage of 350 mV (typ.) only. The output current can be adjusted separately for each channel by 8-bit analog and 12-bit digital dimming control.

Features

• Supply range from 2.6 V to 5 V

• 12 channels for single LED

• 20 mA current capability per channel

• 1% (typ.) current matching at 16 mA and 2% (typ.) at 2.5 mA

• 1.8 V compatible I²C control interface

• 8-bit analog dimming individual control

• 12-bit local PWM resolution

• 8 programmable patterns

• Programmable pattern sequence

• Synchronization for multi-device application

• Phase shifting between channels

• Open LED detection

• Overtemperature protection

• 8 configurable I²C slave addresses plus global address

• Fault flag pin

Applications

• RGB LED lighting, fade-in and fade-out breathing effect, indicator lights for:

– Wearable electronics

– Battery powered devices

– Portable accessories
