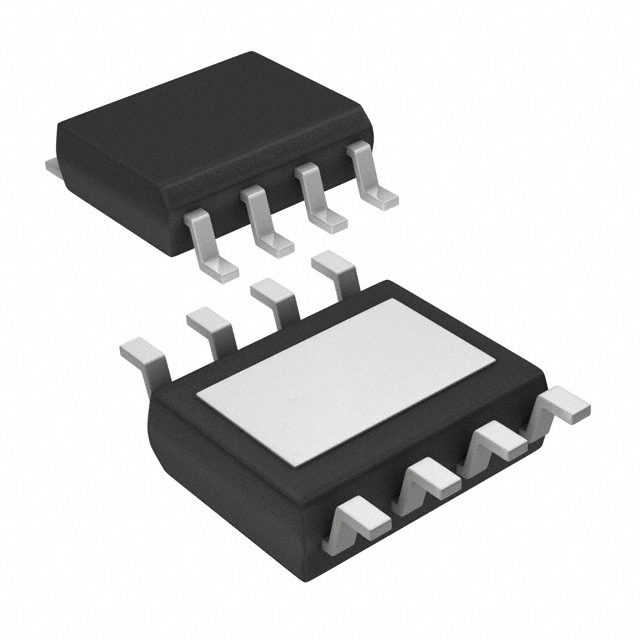

The STCS1PHR is a BiCMOS constant current source designed to provide a precise constant current starting from a varying input voltage source. The main target is to replace discrete components solution for driving LEDs in low voltage applications such as 5 V, 12 V or 24 V giving benefits in terms of precision, integration and reliability.

The current is set with external resistor up to 1.5 A with a ± 10 % precision; a dedicated pin allows implementing PWM dimming.

An open-drain pin output provides information on load disconnection condition.

Features

• Up to 40 V input voltage

• Less than 0.5 V voltage overhead

• Up to 1.5 A output current

• PWM dimming pin

• Shutdown pin

• LED disconnection diagnostic

Applications

• Supplying LEDs with constant current for varying input voltages

• Low voltage lighting

• Small appliance LED lighting
