The STP16DP05XTTR is a monolithic, low voltage, low current power 16-bit shift register designed for use in LED panel displays. The device contains a 16-bit serial input, parallel output shift register that powers a 16-bit D-type memory register. At the output stage, 16 regulated current sources are designed to provide a constant current of 5-100 mA to drive the LEDs.

All Features

Low voltage supply down to 3 V

16 constant current output channels

Output current regulation via external resistors

Short and open output error detection

Serial data input/parallel data output

3.3 V micro driver

Output current: 5-100 mA

30 MHz clock frequency

Exposed TSSOP pads with high thermal efficiency

ESD Protection 2.5 kV HBM, 200 V MM

STP16DP05XTTR Product Attributes

Type: Linear

Topology: Shift Register

Internal Switch: Yes

Number of Outputs: 16

Voltage - Supply (Min): 3V

Voltage - Supply (Max): 5.5V

Voltage - Output: 20V

Current - Output/Channel: 100mA

Frequency: 30MHz

Dimming: -

Application: -

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

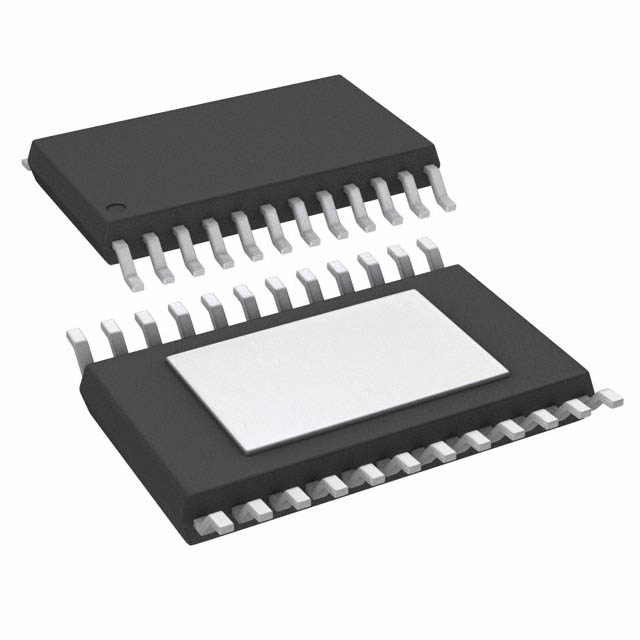

Package/Shell: 24-TSSOP (0.173", 4.40mm Width) Exposed Pad

Supplier Device Package: 24-TSSOP-EP
