The STP16CPC26XTR is a monolithic, low voltage, 16-bit constant current LED sink driver. The device contains a 16-bit shift register and data latch to convert serial input data to a parallel output format. At the output stage, 16 regulated current generators provide a constant current from 5 mA to 90 mA to drive the LEDs, which can be externally adjusted with a resistor, and the LED brightness can be adjusted from 0% to 100% with the OE pin.

The STP16CPC26XTR guarantees 20 V drive capability, allowing users to connect more LEDs in series with each current source.

Product Attributes

Type: Linear

Topology: Shift Register

Internal Switch: Yes

Number of Outputs: 16

Voltage - Supply (Min): 3V

Voltage - Supply (Max): 5.5V

Voltage - Output: 20V

Current - Output/Channel: 90mA

Frequency: 30MHz

Dimming: Analogue

Applications: Lighting

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

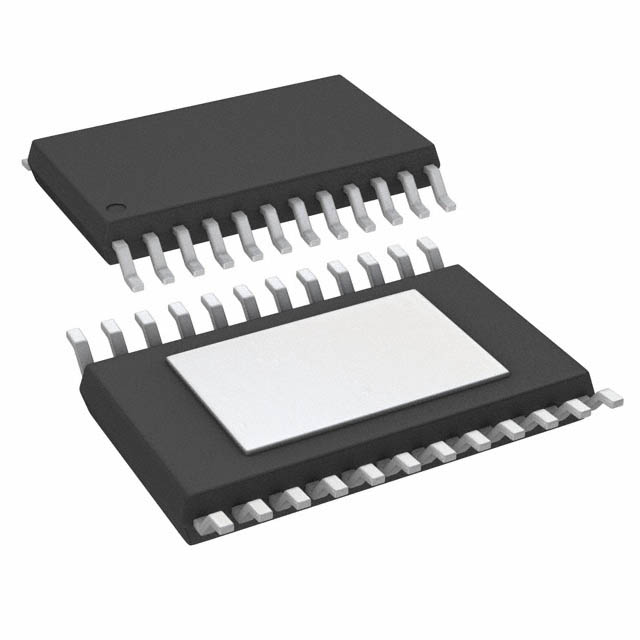

Package/Shell: 24-TSSOP (0.173", 4.40mm Width) Exposed Pad

Supplier Device Package: 24-TSSOP-EP

Applications

Video display panel LED drivers

Speciality lighting
