The LM5168FQDDARQ1 synchronous buck converter is designed to regulate over a wide range of input voltages to minimise the need for external surge suppression components. 50ns minimum controllable on-time facilitates a large step-down conversion ratio and supports direct step-down conversion from a nominal 48V input to the low voltage rail, reducing system complexity and solution cost. The LM5168FQDDARQ1 is capable of operating at nearly 100% duty cycle as needed during input voltage dips down to 6V, making it ideal for industrial and high-cell-count battery pack applications with a wide input supply voltage range.

Features

- Compliant with AEC-Q100 for automotive applications

- Device temperature class 1: -40°C to +125°C ambient temperature range

- Designed for reliability in demanding applications

- Wide input voltage range of 6V to 120V

- Junction temperature range: -40°C to +150°C

- Fixed 3ms internal soft-start timer

- Peak and valley current limit protection

- Input UVLO and thermal shutdown protection

- Ideal for scalable automotive HEV/EV power supplies

- Minimum on-time and off-time as low as 50ns

- Adjustable switching frequency up to 1MHz

- Diode emulation for high light-load efficiency

- Low quiescent current (< 10µA) in auto mode

- FPWM mode supports Fly-Buck converter functionality

- 3µA shutdown quiescent current

- Pin-to-pin compatible with LM5164-Q1, LM5163-Q1, LM5017, LM5013-Q1, and LM34927

- Reduced solution size and cost through integrated technology

- COT Mode Control Architecture

- Integrated 1.9Ω NFET Buck Switch

- Integrated 0.71Ω NFET synchronous rectifier

- 1.2V internal voltage reference

- Loop-free compensation components

- Internal VCC bias regulator and bootstrap diode

- Open-drain power normal state indicator

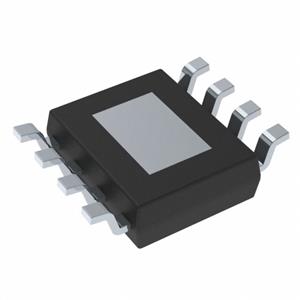

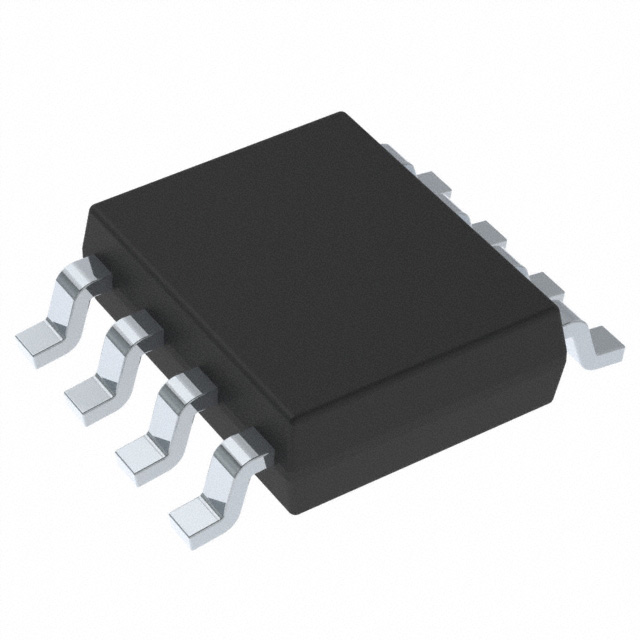

- SOIC PowerPAD™ integrated circuit package

Applications

- Communications - Brick Power Modules

- Industrial Battery Packs (≥ 10 cells)

- Battery Packs - E-Bikes/E-Scooters/LEVs

- HEV/EV - Battery Management Systems
