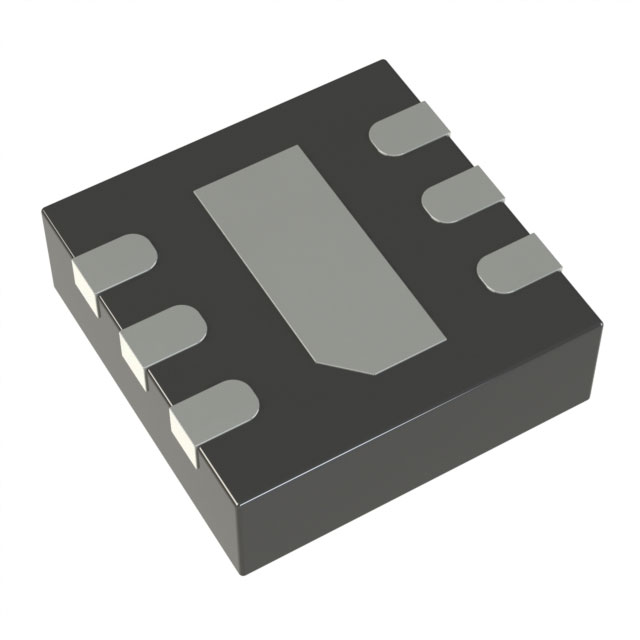

LTC3526LBEDC: 550mA, 1MHz, synchronous boost DC/DC converter, DFN-6

Overview:

The LTC3526LBEDC is a synchronous, fixed-frequency boost DC/DC converter with output disconnect functionality. Synchronous rectification achieves high efficiency in a compact 2mm x 2mm DFN package. With a startup voltage of 680mV and the ability to operate at voltages as low as 500mV once started, it further extends the battery life of products powered by single AA/AAA batteries.

LTC3526LBEDC Product Features:

Provides 3.3V/100mA output from a single alkaline/NiMH battery, or 3.3V/200mA output from two batteries

VIN startup voltage: 680mV

VOUT range: 1.5V to 5.25V

Efficiency up to 94%

Output disconnect

1MHz fixed-frequency operation

Operates under VIN > VOUT conditions

Integrated soft-start functionality

Current-mode control with internal compensation

Low-noise PWM operation

Internal synchronous rectifier

Logic-controlled shutdown mode (IQ < 1μA)

Anti-ring control

Flat (2mm x 2mm x 0.75mm) DFN-6 package

LTC3526LBEDC Applications:

Medical instruments

Noise-cancelling headphones

Wireless mice

Bluetooth headsets
