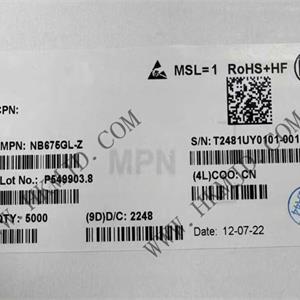

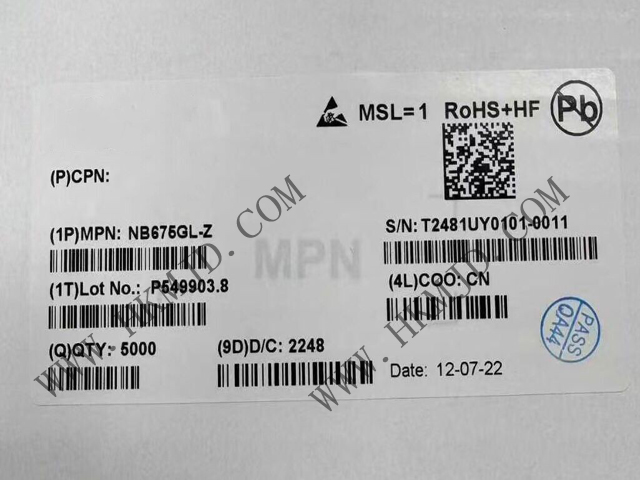

For picture reference, please see the specifications
< >

Commodity Model:NB675GL

Trade Name:Switching Voltage Regulators

Brand:MPS

Particular Year:22+

Package:QFN-21

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
MPS
Model
NB675GL
Package
QFN-21
Describe
10A 24V COT Synchronous Buck Converter

Product Description

NB675GL is High-Efficiency, Fast-Transient, 10A, 24V, Fully-Integrated COT Synchronous Buck Converter with +/-1A LDO and Buffered Reference, Low Iq Version.

NB675GL is able to deliver 10A continuous output current and 12A peak output current over a wide input supply range with excellent load and line regulation. The Buck converter employs the Constant-On-Time (COT) control scheme, which provides fast transient response and eases loop stabilization.


Specification Of NB675GL

Function:Step-Down

Output Configuration:Positive

Topology:Buck

Output Type:Adjustable

Number of Outputs:1

Voltage - Input (Min):5V

Voltage - Input (Max):22V

Voltage - Output (Min/Fixed):0.604V

Voltage - Output (Max):5.5V

Current - Output:10A

Frequency - Switching:500kHz

Synchronous Rectifier:Yes

Operating Temperature:-40°C ~ 125°C (TJ)


Features Of NB675GL

Wide 4.7V to 24V Operating Input Range

10A Continuous Output Current

12A Peak Output Current

Built-in +/- 1.0A VTTLDO

105μA Quiescent Current

Low RDS(ON) Internal Power MOSFETs

Proprietary Switching Loss Reduction Technique

Internal Soft Start

Output Discharge

500kHZ Switching Frequency for NB675L

OCP, OVP, UVP Protection and Thermal Shutdown

VDDQ Adjustable from 0.6V to 5.5V
