LTC3535EDD is a dual-channel, synchronous, fixed-frequency boost DC/DC converter with an output disconnect feature. With a start-up voltage of 680mV and the ability to operate at voltages as low as 500mV once started, it extends battery life in products powered by a single AA/AAA battery.

Product details:

Model: LTC3535EDD

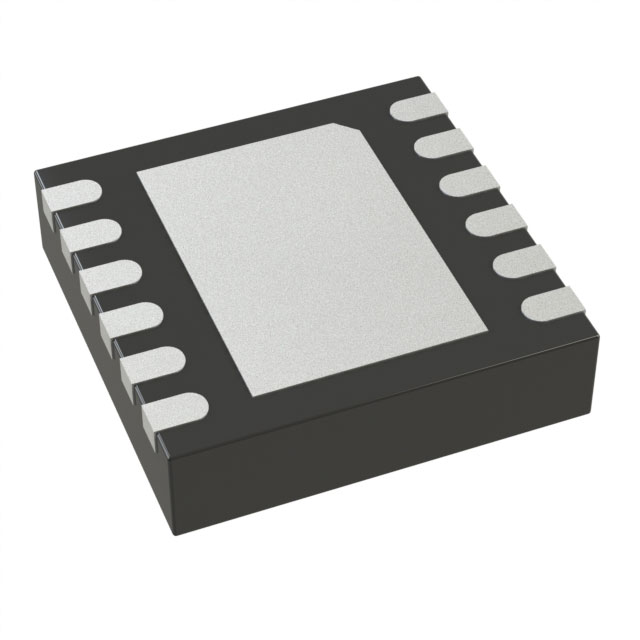

Package: DFN-12

Type: Boost regulator

The LTC3535EDD operates in burst mode under light load conditions, enabling it to maintain high efficiency over a wide load range. Anti-ringing circuitry reduces EMI by damping the inductor in discontinuous mode operation. Other features include a low shutdown current of <1μA and thermal shutdown functionality. The LTC3535EDD is housed in a 3mm x 3mm x 0.75mm DFN package.

LTC3535EDD Specifications:

Function: Boost

Output Configuration: Positive

Topology: Boost

Output Type: Adjustable

Number of Outputs: 2

Voltage - Input (Minimum): 0.5V

Voltage - Input (Maximum): 5V

Voltage - Output (Minimum/Fixed): 1.5V

Voltage - Output (Maximum): 5.25V

Current - Output: 550mA (switching)

Frequency - Switching: 1MHz

Synchronous rectifier: Yes

Operating temperature: -40°C to 85°C (TA)

Mounting type: Surface mount

Package/Case: 12-WFDFN bare pad

Supplier device package: 12-DFN (3x3)
