LT8335IDDB is a current-mode DC/DC converter capable of generating positive or negative output voltages using a single feedback pin. The LT8335IDDB can be configured as a boost, SEPIC, or negative output converter, with a quiescent current as low as 6μA.

Product Details:

Model: LT8335IDDB

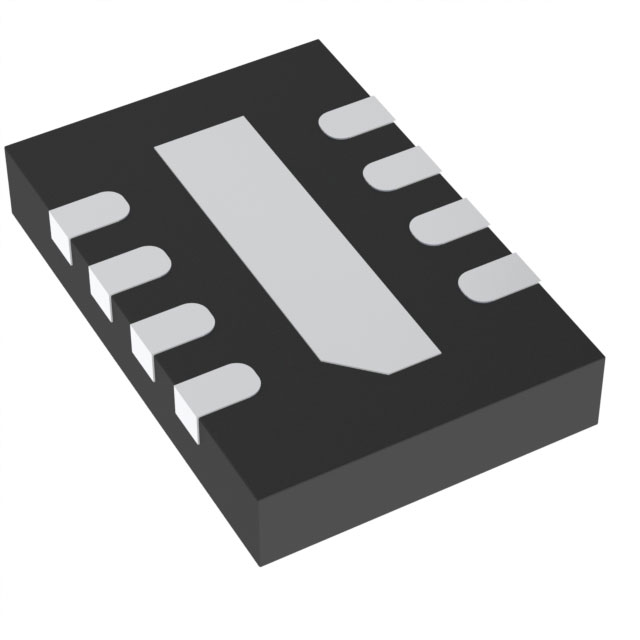

Package: DFN-8

Type: Switching Regulator

The LT8335IDDB employs an internally compensated current-mode architecture to achieve stable operation over a wide range of input and output voltages. The LT8335IDDB incorporates integrated soft-start and frequency foldback circuitry to control inductor current during startup.

LT8335IDDB Specifications:

Function: Boost, Boost/Buck

Output Configuration: Positive or Negative

Topology: Boost, SEPIC

Output Type: Adjustable

Number of Outputs: 1

Voltage - Input (Minimum): 3V

Voltage - Input (Maximum): 25V

Voltage - Output (Minimum/Fixed): 1.6V, -0.8V

Voltage - Output (Maximum): 28V (Switching)

Current - Output: 2A (switch)

Frequency - Switch: 2MHz

Synchronous rectifier: No

Operating temperature: -40°C to 125°C (TJ)

Mounting type: Surface mount

Package/Case: 8-WFDFN bare pad

Supplier device package: 8-DFN (3x2)
