The MAX25660AFFB is a compact synchronous buck-boost converter with an integrated H-bridge switch. This IC provides a fixed output regulation voltage and an externally adjustable output voltage within the range of 2.75V to 14V, regardless of whether the input voltage is higher, lower, or equal to the output regulation voltage. The MAX25660AFFB has an input current limit of 10.8A (typical).

Product Details:

Model: MAX25660AFFB

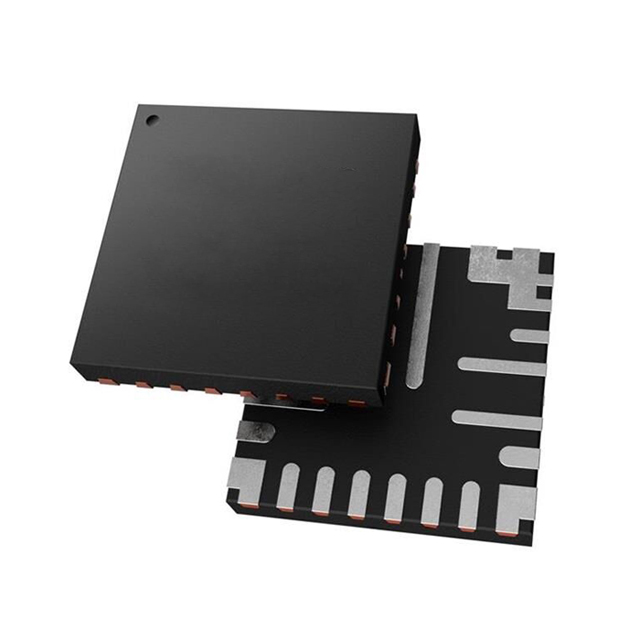

Package: FC2QFN-22

Type: Synchronous buck-boost converter

Description: Automotive low-noise synchronous buck-boost converter, FC2QFN-22

MAX25660AFFB Product Attributes:

Function: Boost/Buck

Output Configuration: Positive

Topology: Buck-Boost

Output Type: Adjustable

Number of Outputs: 1

Voltage - Input (Minimum): 3.6V

Voltage - Input (Maximum): 36V

Voltage - Output (Minimum/Fixed): 2.75V

Voltage - Output (Maximum): 10V

Current - Output: 6A

Frequency - Switching: 400kHz, 2.1MHz

Synchronous rectifier: Yes

Operating temperature: -40°C to 125°C

Mounting type: Surface mount

Package/housing: 22-PowerWFQFN

Supplier device package: 22-FC2QFN (4.25x4.25)

MAX25660AFFB Applications:

Display applications

Taillight and headlight applications

Point-of-load power supply
