The MAX5139GTE is a low-power, 12-bit, buffered voltage-output high-linearity digital-to-analogue converter (DAC). This device can use either a precision internal reference or a precision external reference to achieve full-scale operation. The MAX5139GTE operates on a supply voltage of +2.7V to +5.25V, meeting the requirements of all low-power, low-voltage applications.

MAX5139GTE Product Features:

Bit Count: 12

DAC Count: 1

Settling Time: 5µs (typical)

Output Type: Voltage - Buffered

Differential Output: No

Data Interface: SPI, DSP

Reference Type: External, Internal

Voltage - Supply, Analogue: 2.7V to 5.25V

Voltage - Supply, Digital: 2.7V to 5.25V

INL/DNL (LSB): ±0.25, ±1 (maximum)

Architecture: Resistor-String DAC

Operating Temperature: -40°C to 105°C

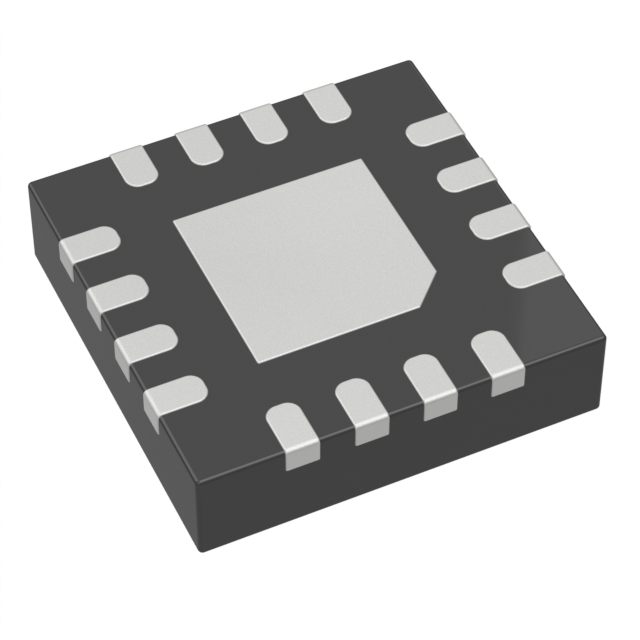

Package/Case: 16-WFQFN Bare Pad

Supplier Device Package: 16-TQFN (3x3)

Mounting Type: Surface Mount

MAX5139GTE Product Features:

12-bit resolution in a 3mm x 3mm, 16-pin TQFN package

Hardware selectable to place DAC output at zero potential/midpoint at power-up or reset

Dual buffered input registers

Low-level active LDAC asynchronous update of DAC output

Low-level active READY for easy daisy-chaining

10ppm/°C high-performance internal reference

Monotonicity guaranteed over the entire operating range

Wide supply voltage range from +2.7V to +5.25V

Full-scale buffered output

Low gain error (less than ±0.5% FS) and offset (less than ±10mV)

30MHz 3-wire SPI/QSPI/MICROWIRE/DSP-compatible serial interface

CMOS-compatible inputs with hysteresis

Low power consumption (ISHDN = 2µA maximum)
