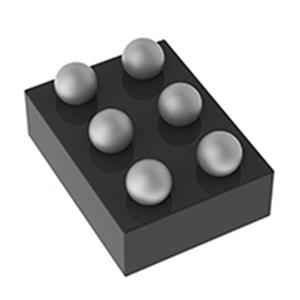

For picture reference, please see the specifications
< >

Commodity Model:MAX6078AMWT50

Trade Name:Voltage Reference

Brand:Maxim

Particular Year:25+

Package:WLP-6

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX6078AMWT50
Package
WLP-6
Describe
High system performance benchmark, using a tiny WLP package, 15uA Iq, suitable for small spaces and battery-critical systems

Product Description

The MAX6078AMWT50 is a precision voltage reference source designed for high-precision industrial, instrumentation, and portable applications. Its key features include extremely low temperature drift, low noise, and low power consumption, making it ideal for applications requiring a stable voltage reference. The device provides a fixed 5V output and is housed in a compact 6-WLP (1.46mm × 1.29mm) package, suitable for space-constrained designs.


MAX6078AMWT50 Key Features

High initial accuracy: ±0.04%

Low temperature drift: Maximum 10ppm/°C

Ultra-low noise:

0.1Hz to 10Hz frequency band: 12µVp-p (2.5V output option)

10Hz to 10kHz frequency band: 30µVrms

Low power consumption: Maximum supply current of only 15µA (typical value 18µA)

Load drive capability: Can provide or absorb 3mA current

Wide input voltage range: 2.7V to 5.5V

Low voltage drop: Only 100mV

Long-term stability: Typical 16ppm (4000 hours)

Package options: 6-WLP (wafer-level packaging, 1.46mm × 1.29mm) 146


MAX6078AMWT50 Technical Specifications

Output voltage: 5V (fixed)

Initial accuracy: ±0.04%

Temperature coefficient: 10ppm/°C (maximum)

Noise (0.1Hz–10Hz): 12µVp-p

Noise (10Hz–10kHz): 30µVrms

Input voltage range: 2.7V to 5.5V

Quiescent Current: 15µA (maximum)

Load Current Capacity: ±3mA

Operating Temperature Range: -55°C to +125°C

Package: 6-WLP (1.46mm × 1.29mm)


MAX6078AMWT50 Application Areas

High-precision industrial and process control: for sensor signal conditioning, PLC systems, etc.

Precision instruments: such as multimeters, data acquisition systems

High-resolution ADC/DAC: providing a stable reference voltage

Portable and battery-powered devices: such as medical monitoring devices, handheld instruments

Communication equipment: as a reference voltage source for RF signal chains
