MAX5823AWP: 8-channel, 8-bit buffered output digital-to-analogue converter (DAC) with integrated reference and I²C interface

Model: MAX5823AWP

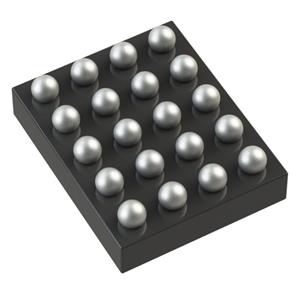

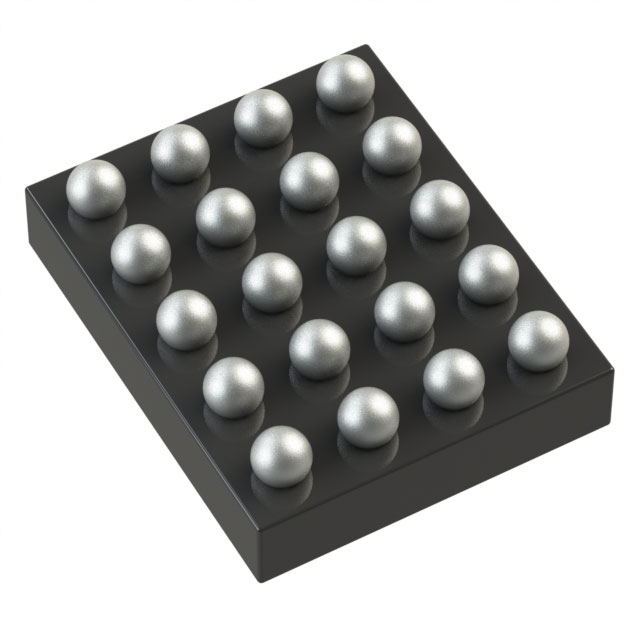

Package: WLP-20

Type: 8-bit digital-to-analogue converter (DAC)

Overview:

The MAX5823AWP is an 8-channel, low-power, 8-bit voltage-output digital-to-analogue converter (DAC) with output buffers and a selectable reference of 2.048V, 2.500V, or 4.096V with 3ppm/°C temperature coefficient. The MAX5823AWP operates from a wide voltage supply range of 2.7V to 5.5V, with extremely low power consumption (6mW), making it ideal for most low-voltage applications. An external precision reference input supports full-scale operation, with an equivalent load impedance of 100kΩ (typical) for the external reference.

MAX5823AWP Product Features:

Eight-channel high-precision DAC

12-bit precision, no adjustment required

±1 LSB INL with buffered voltage output

Monotonicity guaranteed over the entire operating range

Each DAC channel has an independent setting mode

Three selectable internal precision reference voltages

2.048V, 2.500V, or 4.096V

Internal output buffer

Supports full-scale operation with external reference

4.5µs settling time

Output can directly drive a 2kΩ load

6.5mm × 4.4mm 20-pin TSSOP package or ultra-small size, 2.5mm × 2.3mm 20-ball WLP package

Wide power supply range from 2.7V to 5.5V

Independent 1.8V to 5.5V VDDIO power supply input

Compatible with 400kHz I²C high-speed 2-wire serial interface

Pin-selectable power-on reset, DAC output to zero or mid-scale

/LDAC and /CLR for asynchronous DAC control

Software-selectable three shutdown output impedances

1kΩ, 100kΩ, or high impedance
