The RTQ5756AWSC product is a synchronous step-down converter with 4-phase functionality, allowing for both multi-phase and single-phase operation. The RTQ5756AWSC offers three output channels of 2, 1 and 1 phases. This flexibility and high integration make the RTQ5756AWSC suitable for a wide range of applications that require high current and compact power management solutions, such as low-power processors, I/O power supplies, FPgas, DSPS, and core power supplies for other ASics. The input voltage range of this converter is 3V to 5.5V, and it is compatible with various low-voltage systems. They can provide a peak current of up to 20A and support output voltages ranging from 0.4V to 1.55V.

Technical parameters

Function: Lower blood pressure

Output configuration: positive

Topology: Voltage reduction

Output type: Programmable

Output number: 3

Voltage - Input (minimum value) : 3V

Voltage - Input (maximum) : 5.5V

Voltage - Output (minimum value/fixed) : 0.4V

Voltage - Output (maximum value) : 2.05V

Current - output: 5A

Frequency - Switch: 2MHz

Synchronous rectifier: Yes

Operating temperature: -40°C to 125°C (TJ)

Installation type: Surface mount type

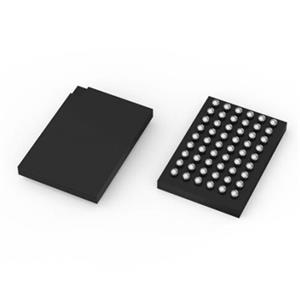

Device packaging: 54-WLCSP (2.69x3.92)

Target application

Home gateway and access point network

Optical module

Set-top boxes and OTT devices

Storage system

Monitoring system
