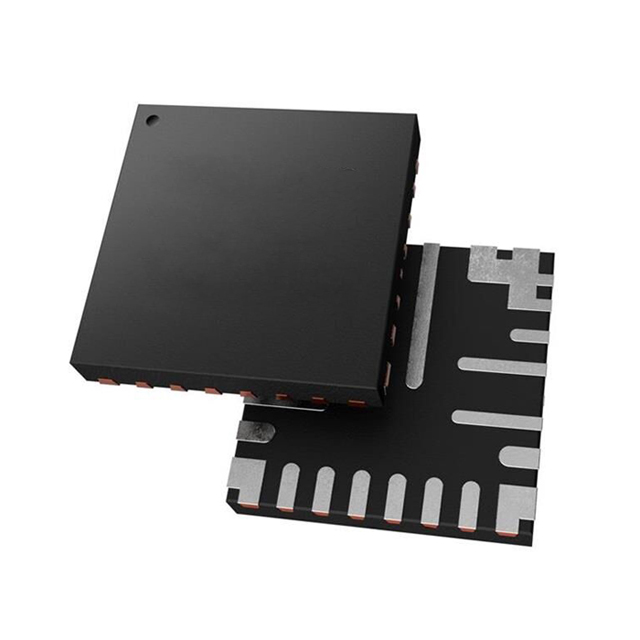

MAX25660AFFA: Automotive Low-Noise Synchronous Buck-Boost Converter, FC2QFN-22

Overview:

The MAX25660AFFA is a compact synchronous buck-boost converter with integrated H-bridge switches. This IC provides a fixed output regulated voltage within the range of 2.75V to 14V and an externally adjustable output voltage when the input voltage is higher than, lower than, or equal to the output regulated voltage. The input current limit for the MAX25660AFFA is 9A (typical).

MAX25660AFFA Product Features:

3.6V to 36V operating input voltage range, enabling operation under cold start conditions

Withstands input transient voltages up to 42V

Low audible noise during 6A load transients

9A or 10.8A typical input current limit

Loop bandwidth adjustment for fast transients

-40°C to +125°C automotive temperature range (Class 1)

High integration and thermally enhanced packaging certified to AEC-Q100 reduces BOM costs and minimises PCB space

2.1MHz/400kHz switching frequency options

Thermally enhanced 22-pin FC2QFN packaging

5μA maximum shutdown current

Protection features enhance system reliability

Power supply undervoltage lockout and thermal protection
