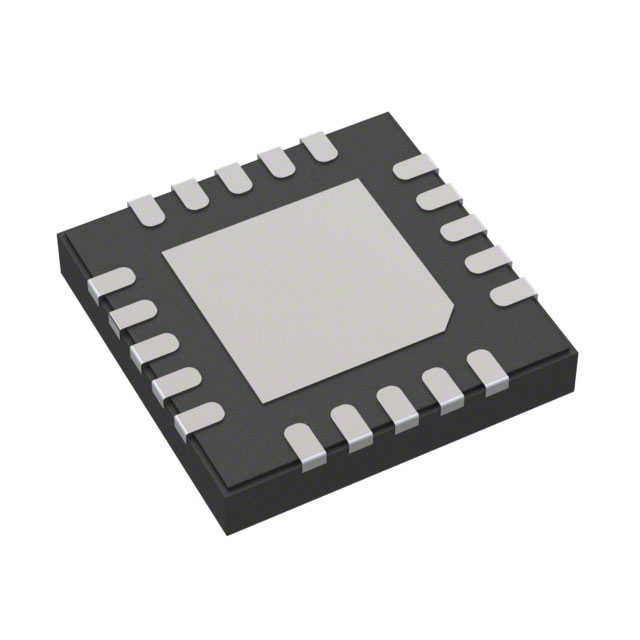

MAX26240AFFAY: Integrated H-bridge 4.5V to 36V, 2.2MHz, 0.6A/1.2A buck-boost converter

Overview:

The MAX26240AFFAY is a compact synchronous buck-boost converter with integrated high-side and low-side switches. The MAX26240AFFAY is designed to deliver up to 1.2A of current at input voltages ranging from 4.5V to 36V, while consuming only 52μA of quiescent current at no load. The IC provides ±2% accurate output voltage. Voltage quality can be monitored by observing the Power Good (PGOOD) signal.

MAX26240AFFAY Product Features:

High voltage, high efficiency, low power consumption

Operating power supply voltage: 4.5 V to 36 V

Withstands input transients up to 40V

EN pin compatible with a voltage range of 3.3V to 40V

1.2A (maximum) output current

Temperature range: -40°C to +125°C

Improves efficiency by reducing bill of materials (BOM) costs and PCB space

Integrated field-effect transistor (FET) H-bridge architecture

Fixed output voltage

Standby mode static current: 52 μA

Shutdown mode static current: 10 μA (maximum)

High switching frequency allows use of small external components

Operating frequency: 200 kHz to 2.2 MHz

Jump mode enables efficient low-power operation

Fixed-frequency pulse width modulation (PWM) mode

External frequency synchronisation

Reduced EMI emissions at switching frequency

Spread spectrum can be enabled or disabled

MAX26240AFFAY applications:

Telecom, servers, and network equipment

12V/24V industrial applications

Point-of-load (POL) power supplies
