MAX26040ATPAY is a small synchronous buck-boost converter with integrated high-side and low-side switches. The MAX26040ATPAY is designed to deliver up to 1.2A of current at input voltages ranging from 4.5V to 36V, while consuming only 52μA of quiescent current at no load. The IC provides an accurate output voltage with ±2% accuracy. Voltage quality can be monitored by observing the power good (PGOOD) signal.

Product Details:

Model: MAX26040ATPAY

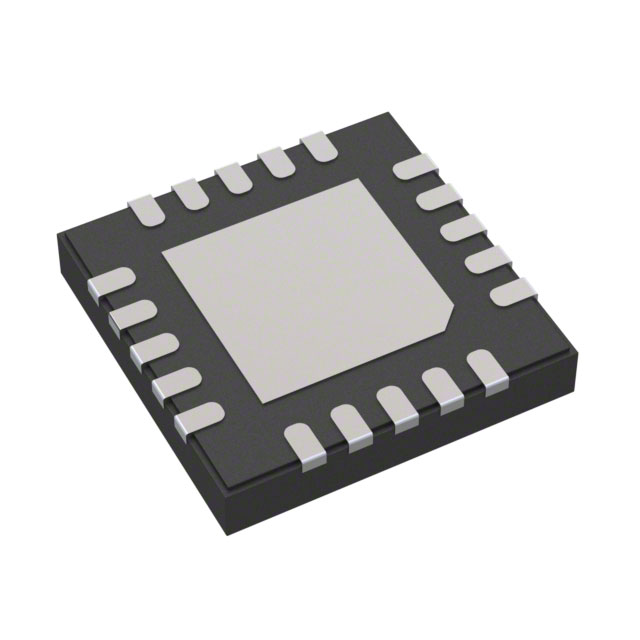

Package: TQFN-20

Type: Buck-Boost Converter

Description: Integrated H-bridge 4.5V to 36V, 2.2MHz, 0.6A/1.2A buck-boost converter

MAX26040ATPAY Specifications:

Function: Boost/Buck

Output Configuration: Positive

Topology: Buck-Boost

Output Type: Adjustable (Fixed)

Number of Outputs: 1

Voltage - Input (Minimum): 2V

Voltage - Input (Maximum): 36V

Voltage - Output (Minimum/Fixed): 4V (5V)

Voltage - Output (Maximum): 12V

Current - Output: 600mA

Frequency - Switching: 200kHz to 2.2MHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C to 125°C (TA)

Mounting Type: Surface Mount, Wettable Flanks

Package/Case: 20-WFQFN Bare Pad

Supplier Device Package: 20-TQFN-EP (4x4)

MAX26040ATPAY Applications:

Telecom, servers, and network equipment

12V/24V industrial applications

Point-of-Load (POL) power supplies
