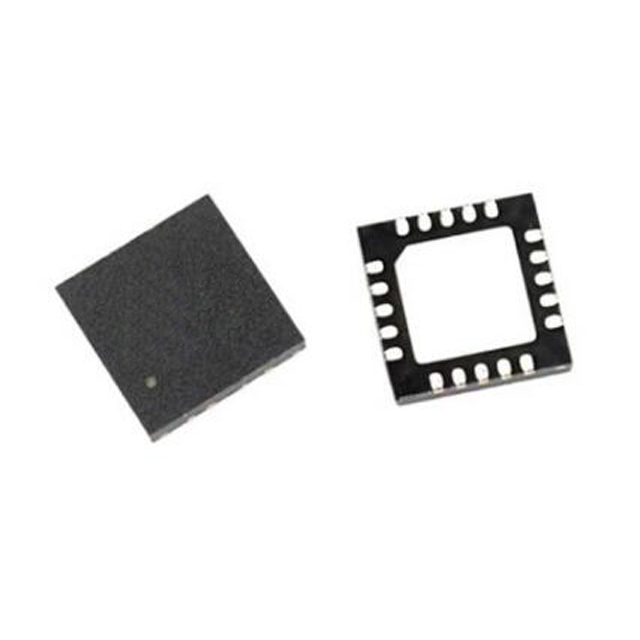

MAX26039ATPAY: 2.2MHz, 0.6A/1.2A buck-boost converter, TQFN-20

Model: MAX26039ATPAY

Package: TQFN-20

Type: Buck-boost converter

Overview:

The MAX26039ATPAY is a compact synchronous buck-boost converter with integrated high-side and low-side switches. The MAX26039ATPAY provides a fixed 5V output voltage and a programmable input range from 4.0V to 15V. The frequency can be adjusted between 220kHz and 2.2MHz, enabling the use of smaller external components and reducing output ripple. The MAX26039ATPAY is housed in a small (4mm x 4mm), 20-pin, side-wettable TQFN package, requiring only a minimal number of external components.

MAX26039ATPAY Product Features:

High voltage, high efficiency, low power consumption

Operating supply voltage range: 4.5 V to 36 V

Withstands input transients up to 40V

EN pin compatible with a voltage range of 3.3 V to 40 V

0.6 A (maximum) output current

Temperature range: -40°C to +125°C

Improves efficiency by reducing bill of materials (BOM) costs and PCB space

Integrated field-effect transistor (FET) H-bridge architecture

Fixed output voltage

20-pin SWTQFN package

Low static current helps designers meet stringent original equipment manufacturer (OEM) current requirements

Static current in standby mode: 52μA

Static current in shutdown mode: 10μA (maximum)

High switching frequency allows the use of small external components

Operating frequency range: 200kHz to 2.2MHz

Jump mode enables efficient low-power operation

Fixed-frequency pulse width modulation (PWM) mode

External frequency synchronisation

Reduced EMI emissions at switching frequency

Spread spectrum can be enabled or disabled
