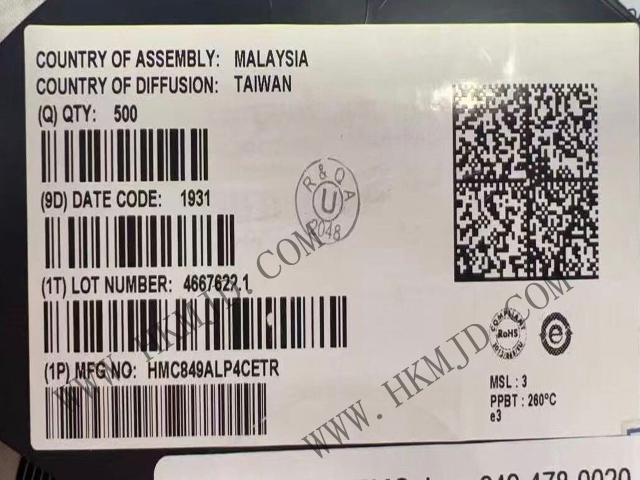

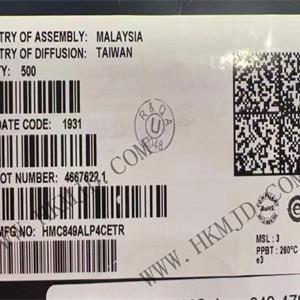

For picture reference, please see the specifications
< >

Commodity Model:HMC849ALP4CETR

Trade Name:RF Switch

Brand:ADI

Particular Year:19+

Package:LFCSP-16

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
HMC849ALP4CETR
Package
LFCSP-16
Describe
High isolation SPDT non-reflective switch, SMT package, DC - 6 GHz

Product Description

The HMC849ALP4CETR is a high-isolation, non-reflective DC to 6 GHz GaAs pHEMT SPDT switch in a low-cost, leadless surface-mount package. This switch is ideal for cellular/WiMAX/4G infrastructure applications, offering up to 60 dB isolation, 0.8 dB low insertion loss, and +52 dBm input IP3. Within the highest 5–6 GHz WiMAX frequency band, the device exhibits high power handling capability and provides +31 dBm P1dB compression point performance. On-chip circuitry enables single positive voltage control at 0/+3 V or 0/+5 V with extremely low DC current. Setting the enable input (EN) to a logic high level places the switch in the ‘fully off’ state.


HMC849ALP4CETR Features

High isolation: Up to 60 dB

Single positive control voltage: 0/+3 V to +5 V

High input IP3: +52 dBm

Non-reflective design

‘Fully off’ state

16-pin 4x4mm SMT package: 16mm²


Technical Specifications

Product Model: HMC849ALP4CETR

Frequency Range: DC to 6 GHz

Switch Type: SPDT (Single Pole Double Throw)

Isolation: 56 dB @4 GHz

Insertion Loss: 1 dB @4 GHz

Input IP3 (linearity): +52 dBm

P1dB (power capacity): +33 dBm

Supply voltage: 3 V to 5 V

Operating current: 1.3 mA (typical)

Package: 16-LFCSP (4×4 mm)

Compliance standards: RoHS3, AEC-Q100 (Automotive grade optional)


HMC849ALP4CETR Applications

Cellular/4G infrastructure

WiMAX, WiBro, and fixed wireless

Automotive telematics

Mobile radio

Test equipment
