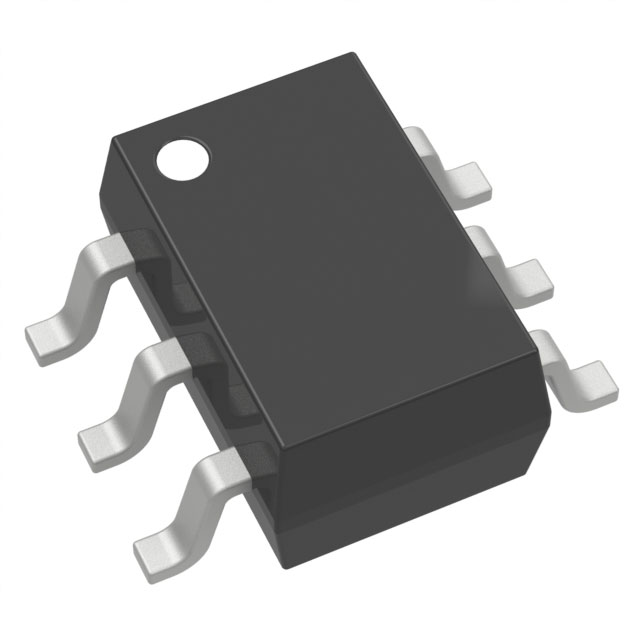

Commodity Model:HMC545AE

Trade Name:RF Switch

Brand:ADI

Particular Year:25+

Package:SOT-23-6

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
HMC545AE
Package
SOT-23-6
Describe
RF Switch IC GaAs MMIC SPDT Switch, DC - 3 GHz

Product Description

The HMC545AE is a low-cost SPDT switch in a 6-pin SOT26 plastic package, ideal for general-purpose switching applications requiring extremely low insertion loss and minimal size. These devices feature typical loss of 0.25 dB and can control signals in the frequency range from DC to 3.0 GHz, making them particularly suitable for IF and RF applications, including cellular/3G, ISM, automotive, and notebook computers. The design offers excellent insertion loss performance, making it highly suitable for filter and receiver switching applications. In the ‘off’ state, RF1 and RF2 are reflected and short-circuited. The DC current required for the two control voltages is very low and compatible with CMOS and some TTL logic families.


Applications

HMC545AE is suitable for:

Cellular/3G infrastructure

Specialised mobile wireless phones

WLAN, WiMAX, and WiBro

Automotive telematics systems

Test equipment


HMC545AE Features:

Low insertion loss: 0.27 dB

High input IP3: +54 dBm

Low DC power consumption

Positive control voltage: 0/+3V to 0/+8V

Small package: SOT26


HMC545AE Specifications:

Product type: RF switch IC

Switch configuration: SPDT

Minimum frequency: 0 Hz

Maximum frequency: 3 GHz

Insertion loss: 0.4 dB

Off-isolation—typical: 22 dB

Minimum operating temperature: -40°C

Maximum operating temperature: +85°C

Mounting Style:    SMD/SMT

Package/Case:    SOT-23-6

Technology:    GaAs

Series:    HMC545AG

High Control Voltage:    3 V to 8 V

Number of Switches:    Single

Idle Time—Maximum:    90 ns

Operating Time—Maximum:    90 ns

Pd-Power Dissipation:    100 mW

Associated Products

Model

Brand

Package

Quantity

Describe

HMC849ALP4CE

ADI

QFN-16

2000

High isolation SPDT non-reflective switch, SMT package, DC - 6 GHz

HMC596LP4E

ADI

QFN-24

2000

RF Switch IC CMOS 4x2 switch matrix, SMT package, 0.2 - 3.0

HMC536MS8GE

ADI

MSOP8G-8

2000

RF Switch IC 3 Watt SPDT T/R Switching Chip SMT, DC - 6 GHz

HMC427ALP3E

ADI

SMT

2000

RF switch IC, SMT package, DC - 8 GHz

SKY13498-21

Skyworks

MCM-20

20000

RF Switch IC General Purpose SP10T 50 Ohm 20-MCM (2.5x2.5)

HMC849ALP4CETR

ADI

LFCSP-16

2000

High isolation SPDT non-reflective switch, SMT package, DC - 6 GHz

F2971NCGK8

Renesas

20-VFQFPN

2500

75ohm SP2T Absorptive RF Switch 5MHz to 3000MHz with RFC Termination

F2955NBGK

Renesas

24-VFQFPN

2500

50MHz to 8GHz, high-reliability SP5T RF switch

TGS2353-2-SM

Qorvo

QFN-22

2000

0.5 to 18 GHz High Power SPDT Reflective Switch

HMC194AMS8E

ADI

8-MSOP

3000

SPDT high isolation switch SMT, DC-3 GHz
