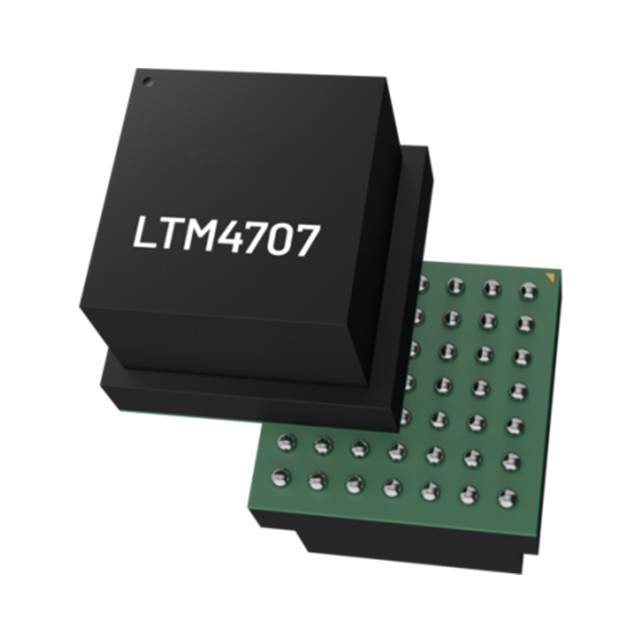

The LTM4707IY is a complete 16A step-down Silent Switcher 3 power μModule® regulator in a tiny 6.25mm × 6.25mm × 5.07mm BGA package. This package contains a switch controller, power MOSFET, inductor and supported components.

Characteristics

Provide complete solutions in Spaces of <1cm ² (single-sided PCB) or 0.5cm ² (double-sided PCB)

Low-noise Silent Switcher®3 architecture

Ultra-low EMI radiation

Ultra-low RMS noise (10Hz to 100kHz) : 8μVRMS

The maximum total DC output voltage error across the entire line, load and temperature range is ±1.5%

Input voltage range: 3V to 16V

Output voltage range: 0.3V to 6V

The maximum continuous output current is 16A

Adjustable and synchronous: 300 KHZ to 3MHz

Current mode control, fast transient response

Forced Continuous Mode (FCM) function

Multiphase parallel current sharing

The programmable power supply is normal

It adopts a 49-pin, 6.25mm × ×6.25mm × ×5.07mm BGA package

The working input voltage range of the LTM4707IY is 3V to 16V, and it supports an output range of 0.3V to 6V. The output voltage is set through a single resistor, thereby providing unit gain operation within the output range and generating an output noise that is independent of the output voltage and almost constant. This design can be completed simply by batch inputting and outputting capacitors.

Typical applications

Telecommunications, networks and industrial equipment

Rf power supplies, including PLL, VCO, mixer, LNA and PA

Low-noise instruments and meters

High-speed and high-precision data converter
