Trade Name:RF Switch
Brand:ADI
Particular Year:25+
Package:SMT
Delivery Date:New and Original
Stock: 2000pcs

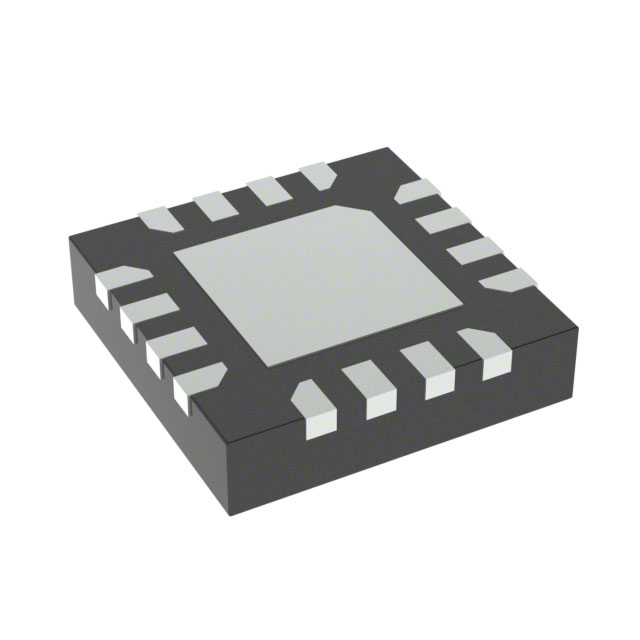

The HMC427ALP3E is a low-loss broadband positive control switch in a leadless surface-mount package. The switch operates over a frequency range from DC to 8 GHz, offering high isolation and low insertion loss. It operates with a positive control voltage of 0/+5V and requires a fixed bias of +5V (< 20 μA).
*Ports RF1, 2, 3, and 4 require DC blocking capacitors. Their values determine the minimum transmission frequency.
HMC427ALP3E Product Features
High isolation: 40–45 dB at 6 GHz
Low insertion loss: 1.2 dB at 6 GHz
Non-reflective design
3x3 mm SMT package
HMC427ALP3E Product Parameters
Product Type: RF Switch IC
High Control Voltage: 5.2 V
Insertion Loss: 1.8 dB
Maximum Frequency: 8 GHz
Maximum Operating Temperature: +85°C
Minimum Frequency: 0 Hz
Minimum Operating Temperature: -40°C
Humidity Sensitivity: Yes
Mounting Style: SMD/SMT
Number of Switches: Quad
Off-Isolation—Typical: 43 dB
Idle Time—Maximum: 10 ns
Operating Time—Maximum: 10 ns
Operating Supply Current: 5 μA
HMC427ALP3E Product Applications
Test and measurement instruments
Fibre optic and broadband communications
Base station infrastructure
Microwave radio and VSAT
Military radio, radar, and ECM
