The F2971NCGK8 is a robust and low-insertion loss 75Ω SP2T (SPDT) absorption RF switch, specifically designed for a wide range of CATV and broadband RF applications. The F2971NCGK8 covers a wide frequency range from 5MHz to 3000MHz. In addition to having excellent linearity and isolation performance, it also provides 75Ω termination for isolated RF ports. The F2971NCGK8 has an internal switch terminal resistor on the RF common port.

Typical applications

The F2971NCGK8 RF switch is widely used in the following fields:

Cable TV/broadband application

"Head end"

Fiber optic /HFC distribution node

Distribution amplifier

Switch matrix

DTV tuner input selection

DVR/PVR/ set-top box

Cable TV testing equipment

Performance parameters

Radio frequency type: CATV

Topology: Absorption

Circuit: SPDT

Frequency range: 5MHz to 3GHz

Isolation: 57dB

Insertion loss: 0.64dB

Test frequency: 3GHz

P1dB: 32dBm

IIP3:75dBm

Feature: -

Impedance: 75 ohms

Voltage - Power supply: 2.7V to 3.6V

Operating temperature: -40°C to 105°C

Installation type: Surface mount type

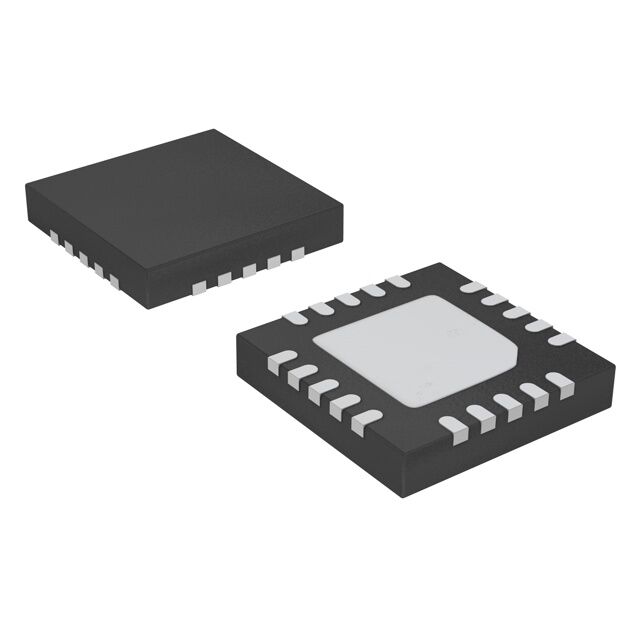

Packaging/Housing: 20-WFQFN
