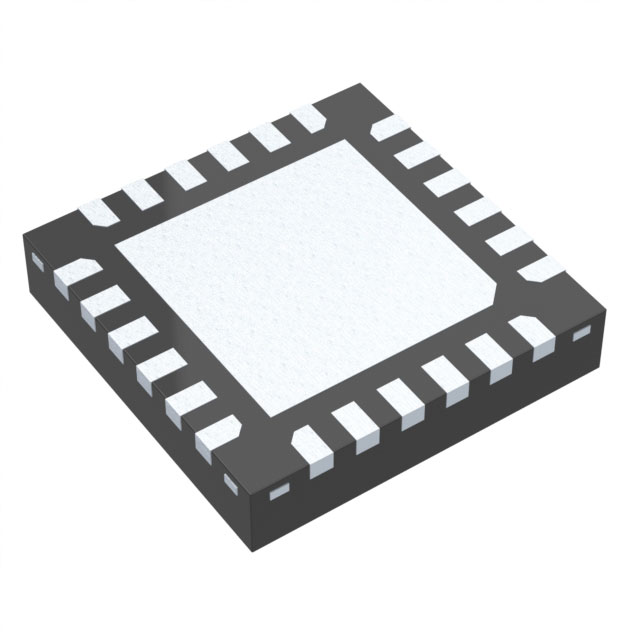

The HMC596LP4E is a low-cost 4x2 switch matrix product in a leadless QFN 4x4 mm surface-mount package, suitable for satellite/DBS, LNB, and 200 MHz to 3000 MHz multiplex switches. The switch integrates a 4-bit decoder controlled by a positive voltage. The switch is suitable for 75 Ω or 50 Ω systems.

Both switch outputs (OP1 and OP2) can independently select any one of the four inputs (HH, HL, VH, VL) or simultaneously select the same input. Note that the switch is bidirectional, and the input/output functions can be interchanged. All data provided was measured in a 50 Ω (input/output) system.

HMC596LP4E Features

High-level isolation/low insertion loss

Integrated CMOS

Compatible with 4-bit decoder

Single positive power supply: Vdd = +5V

QFN leadless SMT package, 16 mm²

4x4 switch matrix using two ICs

HMC596LP4E Technical Specifications

Minimum frequency: 200 MHz

Maximum frequency:    3 GHz

Insertion loss:    7.5 dB

Off-isolation—typical:    40 dB

Minimum operating temperature:    -40°C

Maximum operating temperature:    +85°C

Operating power supply current:    200 μA

HMC596LP4E Typical Applications

4×2 switch matrix for applications in the 0.2 to 3.0 GHz frequency range:

DBS LNB and multiswitch

Cable modems/cable TV

Cellular systems
