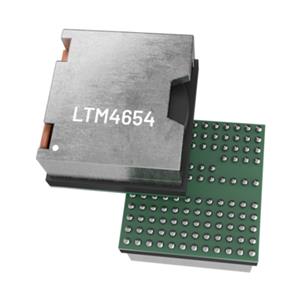

The LTM4654EY hybrid step-down µModule® bus converter is a complete 300W output pull-up/potting current switching mode hybrid topology step-down DC-DC power μModule (micro module) bus converter. The LTM4654EY is designed to provide an output current of up to 25A within an input voltage range of 20V to 55V.

Key features

Input voltage range: 20V to 55V, absolute maximum value: 57V

Wide output voltage range: 4.5V to 18V (VOUT < VIN/2)

Efficiency: 96.7% (9V, output ±15A, 48VIN)

Maximum total DC output error: ±3%

Up to 300W output power (pull-up/pull-up current)

It can be expanded for higher-power applications

Fixed-frequency current mode control

Phase-locked external synchronization: 200kHz to 1MHz

Low starting surge current, voltage balancing of CFLY and CMID before DC-DC switch operation

Output voltage tracking with soft start

Short-circuit protection with adjustable retry timer

Overcurrent and overheat protection

On-board diode temperature monitor

Optional external reference input

Good power supply and fault output indicator light

Internal operating temperature range: -40°C to +125°C

120 pins, 16mm × 16mm × 8.96mm, BGA package

Compliant with RoHS standards

The LTM4654EY voltage regulator adopts a compact BGA package, integrating a switch controller IC, power MOSFET, magnetic components and matching parts, significantly simplifying the power system design and reducing the circuit board space. The LTM4654EY features a fixed 5:1 input-to-output voltage ratio, making it highly suitable for converting high-voltage intermediate bus rails to lower voltages in telecommunications, industrial, and automotive applications.
