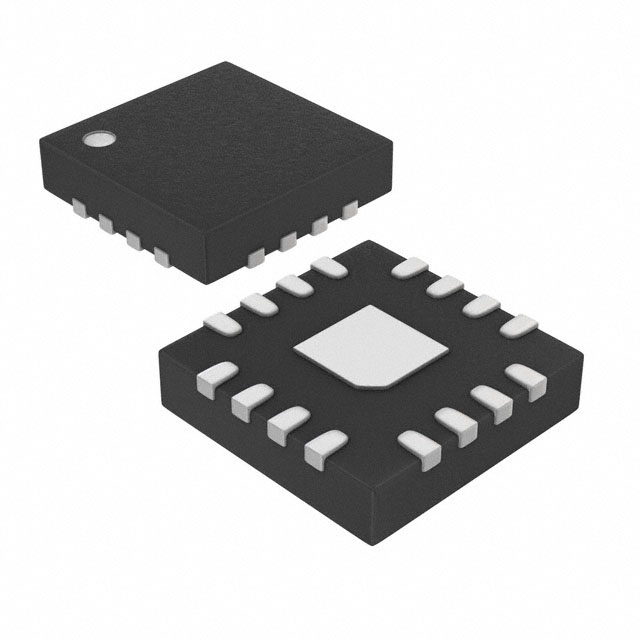

Commodity Model:HMC849ALP4CE

Trade Name:RF Switch

Brand:ADI

Particular Year:25+

Package:QFN-16

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
HMC849ALP4CE
Package
QFN-16
Describe
High isolation SPDT non-reflective switch, SMT package, DC - 6 GHz

Product Description

The HMC849ALP4CE is a high-isolation, non-reflective DC to 6 GHz GaAs pHEMT SPDT switch in a low-cost, leadless surface-mount package. This switch is ideal for cellular/WiMAX/4G infrastructure applications, offering up to 60 dB isolation, 0.8 dB low insertion loss, and +52 dBm input IP3. Within the highest 5–6 GHz WiMAX frequency band, the device exhibits high power handling capability and provides +31 dBm P1dB compression point performance. The on-chip circuitry enables single positive voltage control at 0/+3 V or 0/+5 V with extremely low DC current. Setting the enable input (EN) to a logic high level places the switch in the ‘fully off’ state.


HMC849ALP4CE Features:

High isolation: Up to 60 dB

Single positive control voltage: 0/+3V to +5V

High input IP3: +52 dBm

Non-reflective design

‘Fully off’ state

16-pin 4x4mm SMT package: 16mm²


Typical applications

The HMC849ALP4CE is suitable for:

Cellular/4G infrastructure

WiMAX, WiBro, and fixed wireless

Automotive telematics

Mobile radio

Test equipment


HMC849ALP4CE Technical Specifications:

Switch Configuration: SPDT

Minimum Frequency: 0 Hz

Maximum Frequency: 6 GHz

Insertion Loss: 1.8 dB

Off Isolation—Typical: 50 dB

Minimum Operating Temperature: -40°C

Maximum Operating Temperature: +85°C

Mounting Style: SMD/SMT

Package/Case:    QFN-16

Technology:    GaAs

Series:    HMC849

Number of Switches:    Dual

Operating Current:    1.3 mA

Pd-Power Dissipation:    969 mW

Supply Voltage - Maximum:    5 V

Supply Voltage - Minimum:    3 V

Associated Products

Model

Brand

Package

Quantity

Describe

HMC596LP4E

ADI

QFN-24

2000

RF Switch IC CMOS 4x2 switch matrix, SMT package, 0.2 - 3.0

HMC545AE

ADI

SOT-23-6

2000

RF Switch IC GaAs MMIC SPDT Switch, DC - 3 GHz

HMC536MS8GE

ADI

MSOP8G-8

2000

RF Switch IC 3 Watt SPDT T/R Switching Chip SMT, DC - 6 GHz

HMC427ALP3E

ADI

SMT

2000

RF switch IC, SMT package, DC - 8 GHz

SKY13498-21

Skyworks

MCM-20

20000

RF Switch IC General Purpose SP10T 50 Ohm 20-MCM (2.5x2.5)

HMC849ALP4CETR

ADI

LFCSP-16

2000

High isolation SPDT non-reflective switch, SMT package, DC - 6 GHz

F2971NCGK8

Renesas

20-VFQFPN

2500

75ohm SP2T Absorptive RF Switch 5MHz to 3000MHz with RFC Termination

F2955NBGK

Renesas

24-VFQFPN

2500

50MHz to 8GHz, high-reliability SP5T RF switch

TGS2353-2-SM

Qorvo

QFN-22

2000

0.5 to 18 GHz High Power SPDT Reflective Switch

HMC194AMS8E

ADI

8-MSOP

3000

SPDT high isolation switch SMT, DC-3 GHz
