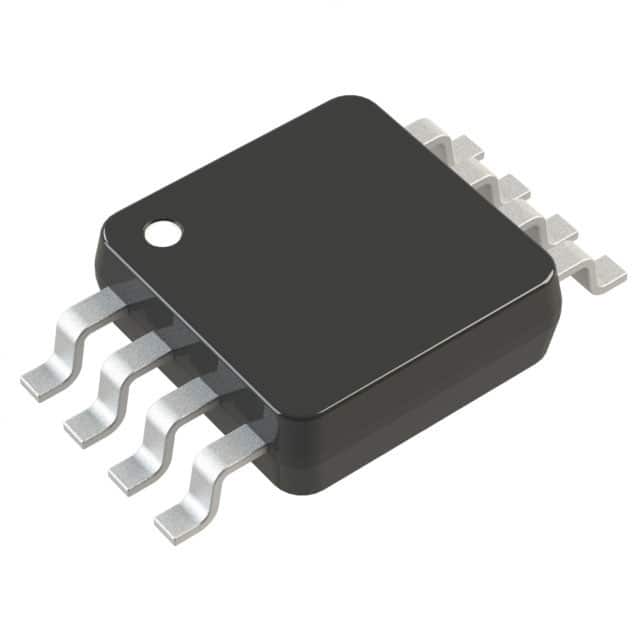

The HMC194AMS8E is a low-cost SPDT switch with an 8-pin MSOP package, suitable for applications that require high isolation performance between two RF paths. The HMC194AMS8E can control signals from DC to 3 GHz, and has been optimized to provide the extremely high isolation and minimum insertion loss required for medium and low power applications. Its on-chip circuit operates under positive voltage control at extremely low DC currents, and the control input is compatible with CMOS and most TTL logic series. In the "off" state, RF1 and RF2 reflect and disconnect.

Basic information

Model: HMC194AMS8E

Radio frequency type: Universal

Topology: -

Circuit: SPDT

Frequency range: 0Hz to 3GHz

Isolation: 38dB

Insertion loss: 0.5dB

Test frequency: 2.5GHz

P1dB: 29dBm

IIP3:53dBm

Feature: -

Impedance: 50 ohms

Voltage - Power supply: 3V to 7V

Operating temperature: -40°C to 85°C

Installation type: Surface mount type

Packaging/Shell: 8-MSOP

Application field

The HMC194AMS8E switch is applicable to a variety of fields, including:

Cellular /PCS base station

Portable wireless system

MMDS and wireless local area network
