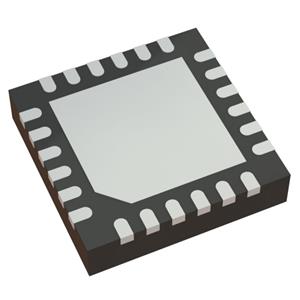

For picture reference, please see the specifications
< >

Commodity Model:F2955NBGK

Trade Name:RF switch

Brand:Renesas

Particular Year:25+

Package:24-VFQFPN

Delivery Date:New and original

Stock: 2500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
F2955NBGK
Package
24-VFQFPN
Describe
50MHz to 8GHz, high-reliability SP5T RF switch

Product Description

The F2955NBGK is a highly reliable, low insertion loss, 50Ω SP5T absorption RF switch, specifically designed for a variety of RF applications, including wireless communication. This device covers a wide frequency range from 50MHz to 8000MHz. In addition to offering low insertion loss, the F2955NBGK also provides excellent linearity and isolation performance, while offering a 50Ω termination for unused RF input ports.


The F2955NBGK also includes a constant impedance function that is currently under patent application. This function enhances the stability of the system's thermal switch, minimizes LO traction in the VCO, and reduces phase and amplitude variations in the distribution network. It is also highly suitable for dynamic switching/selection between two or more amplifiers while avoiding damage to uplink/downlink sensitive devices, such as power amplifiers (PA) and analog-to-digital converters (ADC).


Typical applications

Base stations are 2G, 3G and 4G

Portable wireless

Repeaters and E911 systems

Digital predistortion

Point-to-point infrastructure

Public safety infrastructure

Military systems, JTRS radio

Cable infrastructure

Test/ATE equipment


Basic parameters

Product: F2955NBGK

Radio frequency type: General

Topology: Absorption

Circuit: SP5T

Frequency range: 50MHz to 8GHz

Isolation: 43dB

Insertion loss: 2.3dB

Test frequencies: 5.5GHz, 8GHz

P1dB: 36.5dBm

IIP3:60.5dBm

Feature: -

Impedance: 50 ohms

Voltage - Power supply: 2.7V to 5.25V

Operating temperature: -40°C to 105°C

Installation type: Surface mount type

Package/Housing: 24-WFQFN


Associated Products

Model

Brand

Package

Quantity

Describe

F2971NCGK8

Renesas

20-VFQFPN

2500

75ohm SP2T Absorptive RF Switch 5MHz to 3000MHz with RFC Termination

TGS2353-2-SM

Qorvo

QFN-22

2000

0.5 to 18 GHz High Power SPDT Reflective Switch

HMC194AMS8E

ADI

8-MSOP

3000

SPDT high isolation switch SMT, DC-3 GHz

HMC190BMS8E

ADI

8-MSOP

3000

GaAs MMIC SPDT switch SMT, DC-3 GHz

HMC8058G24

ADI

SMT-24

2000

SP8T non-reflective switch for DC to 2010 MHz

HMC1055LP2CE

ADI

LFCSP-8

3000

0.5GHz to 4.0GHz, GaAs, SPST switch

HMC244AG16

ADI

16-SMT

2500

SP4T sealed switch SMT, DC-4 GHz

ADRF5063BCCZN

ADI

LGA-20

2500

9 kHz to 13 GHz, differential SPDT switch

ADRF5010BCCZN

ADI

LGA-14

2500

Non-reflective silicon SPDT switch ranging from 100 MHz to 55 GHz

ADRF5030BCCZN

ADI

LGA-20

2500

100 MHz to 20 GHz, Non-Reflective, Silicon SPDT Switch
