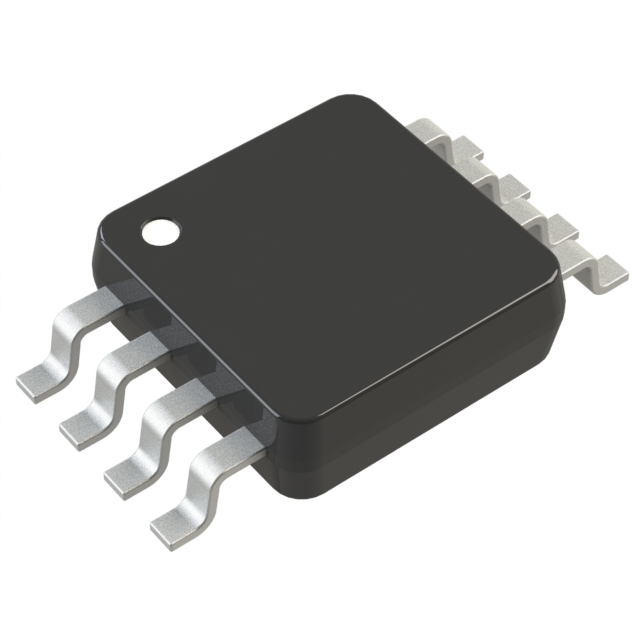

For picture reference, please see the specifications
< >

Commodity Model:HMC536MS8GE

Trade Name:RF Switch

Brand:ADI

Particular Year:25+

Package:MSOP8G-8

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
HMC536MS8GE
Package
MSOP8G-8
Describe
RF Switch IC 3 Watt SPDT T/R Switching Chip SMT, DC - 6 GHz

Product Description

The HMC536MS8GE is a DC to 6 GHz, GaAs, MMIC, T/R switch chip housed in an 8-pin MSOP8G surface-mount package with an exposed ground pad. This switch chip is ideal for cellular PCS/3G base station applications, featuring low insertion loss of 0.5 dB and an input IP3 of +55 dBm. The switch chip demonstrates exceptional power handling capability at 6 GHz, with the switch providing a P0.1dB compression point of +29 dBm under +3 V control. On-chip circuitry enables positive voltage control at 0/+3 V or 0/+5 V with extremely low DC current.


Applications

HMC536MS8GE is suitable for:

Cellular/3G infrastructure

ISM/MMDS/WiMAX

CATV/CMTS

Test instruments


HMC536MS8GE Features

Input P0.1dB: +34 dBm (+5V)

Insertion loss: 0.5 dB

Positive control voltage: +3V or +5V

MS8G SMT package, 14.8 mm²

Isolation: 27 dB

Fast switching speed

Included in the HMC-DK005 design kit

Associated Products

Model

Brand

Package

Quantity

Describe

HMC849ALP4CE

ADI

QFN-16

2000

High isolation SPDT non-reflective switch, SMT package, DC - 6 GHz

HMC596LP4E

ADI

QFN-24

2000

RF Switch IC CMOS 4x2 switch matrix, SMT package, 0.2 - 3.0

HMC545AE

ADI

SOT-23-6

2000

RF Switch IC GaAs MMIC SPDT Switch, DC - 3 GHz

HMC427ALP3E

ADI

SMT

2000

RF switch IC, SMT package, DC - 8 GHz

SKY13498-21

Skyworks

MCM-20

20000

RF Switch IC General Purpose SP10T 50 Ohm 20-MCM (2.5x2.5)

HMC849ALP4CETR

ADI

LFCSP-16

2000

High isolation SPDT non-reflective switch, SMT package, DC - 6 GHz

F2971NCGK8

Renesas

20-VFQFPN

2500

75ohm SP2T Absorptive RF Switch 5MHz to 3000MHz with RFC Termination

F2955NBGK

Renesas

24-VFQFPN

2500

50MHz to 8GHz, high-reliability SP5T RF switch

TGS2353-2-SM

Qorvo

QFN-22

2000

0.5 to 18 GHz High Power SPDT Reflective Switch

HMC194AMS8E

ADI

8-MSOP

3000

SPDT high isolation switch SMT, DC-3 GHz
