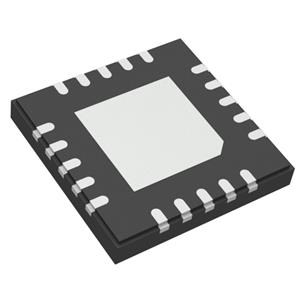

For picture reference, please see the specifications
< >

Commodity Model:MAX25249ATPAA

Trade Name:Switching Regulators

Brand:Maxim

Particular Year:25+

Package:TQFN-20

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX25249ATPAA
Package
TQFN-20
Describe
A four-output micro PMIC suitable for automotive camera applications

Product Description

The MAX25249ATPAA is a four-output power management integrated circuit (PMIC) specifically designed for automotive electronic devices. It complies with ASIL-B safety standards and can operate stably within an automotive-grade temperature range of -40°C to +125°C. Its core features include:

Multi-functional, achieving a small size

1A synchronous high-voltage Buck converter

Input voltage range: 4.5V to 36V

Output voltage range: 3V to 4V, step size: 50mV

Two synchronous low-voltage Buck converters

OUT2 and OUT3 offer a current of up to 1.2A

0.8V to 3.9875V, with a step size of 12.5mV

The LDO supplies power to the camera sensor. 50dB @ 1kHz

2.2MHz operating frequency

Low-level effective RESET output - push-pull type or open drain

High precision

Output voltage accuracy ±1.5%

±1.3% OV/UV monitoring accuracy

Diagnosis and Characteristics

Complies with the ASIL-B standard

Redundant benchmark

Support the reliability of the automotive environment

Current mode, forced PWM working mode

Overheat and short-circuit protection

3.5mm x 3.5mm, 20 pins, TQFN package

Grade 1 automotive temperature range: -40°C to +125°C

Certified by AEC-Q100


The MAX25249ATPAA is suitable for scenarios such as front/rear/panoramic camera and sensor power supply, which can simplify circuit design and optimize space utilization. ‌
