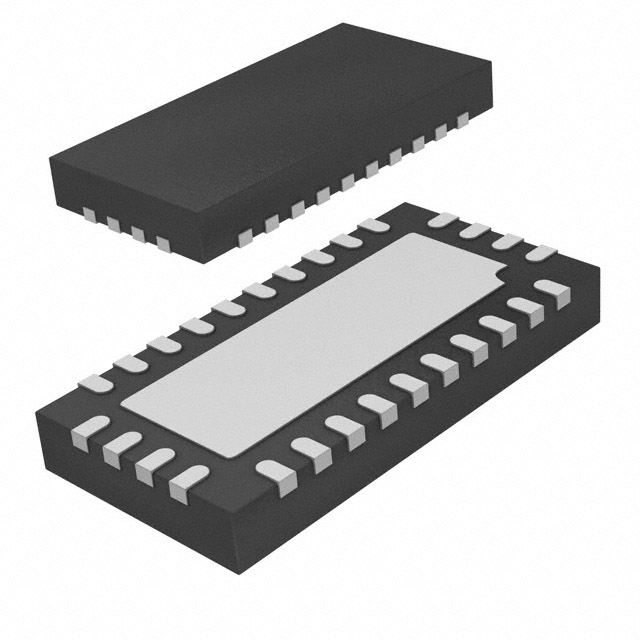

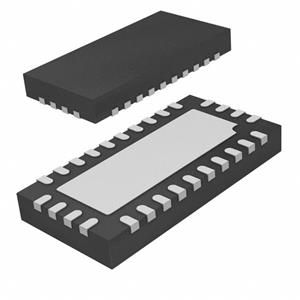

For picture reference, please see the specifications
< >

Commodity Model:LT8613EUDE

Trade Name:Switching Regulators

Brand:ADI

Particular Year:25+

Package:QFN-28

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LT8613EUDE
Package
QFN-28
Describe
42V, 6A synchronous buck regulator with 3μA quiescent current

Product Description

The LT8613EUDE is A compact, high-efficiency, high-speed, synchronous, single-chip, step-down switching regulator that consumes only 3μA of quiescent current. The LT8613EUDE integrates the upper and lower tube power switches as well as all necessary circuits to minimize the need for additional external components. In addition, the LT8613EUDE also features an integrated current detection amplifier with monitoring and control pins, which can provide accurate input or output current regulation and limiting.

Main features

Rail-to-rail current detection amplifier with monitoring function

Wide input voltage range: 3.4V to 42V

Ultra-low quiescent current Burst Mode® operation:

3μA IQ (adjusted from 12VIN to 3.3VOUT)

Output ripple < 10 MVP-p

High-efficiency synchronous operation

95% efficiency (at 3A, generating 5VOUT from 12VIN)

94% efficiency (at 3A, generating 3.3V out from 12VIN)

Fast minimum connection time: 40ns

Low pressure drop is available under all conditions: 250mV (at 3A)

Small inductors are allowed

Low EMI

Adjustable and synchronizable frequency range: 200kHz to 2.2MHz

Current mode operation

The accurate 1V enable pin threshold

Internal compensation

Output soft start and tracking

A small-sized heat-resistant performance enhanced 3mm x 6mm 28-pin QFN package


Application scenarios

Automotive and industrial power supplies

General voltage reduction

Constant current constant voltage (CCCV) power supply
