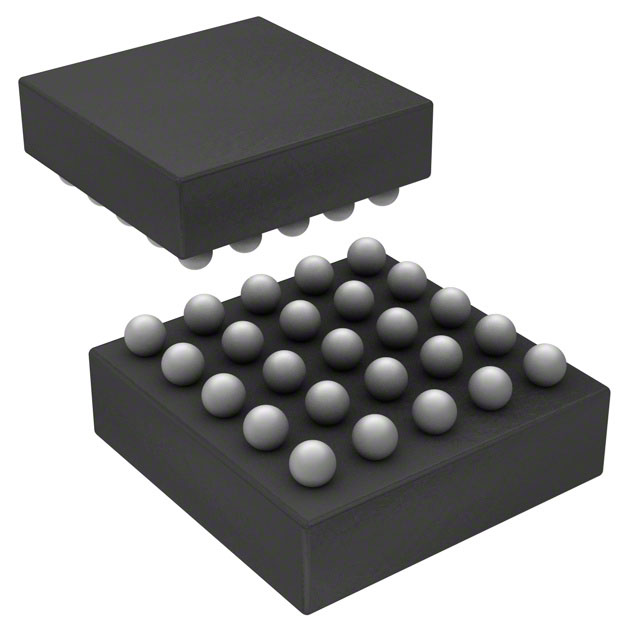

For picture reference, please see the specifications
< >

Commodity Model:MAX14720AEWA

Trade Name:Switching Regulators

Brand:Maxim

Particular Year:25+

Package:WLP-25

Delivery Date:New and original

Stock: 2500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX14720AEWA
Package
WLP-25
Describe
PMIC - Switching Regulator IC REG TRIPLE BUCK/BST/LNR 25WLP

Product Description

The MAX14720AEWA is a compact power management solution, suitable for space-constrained, battery-powered applications where size and efficiency are of critical importance. This device integrates a power switch, a linear regulator, a step-down regulator and a boost/step-down regulator. The MAX14720AEWA is designed as a primary power management device and is suitable for non-rechargeable battery (button batteries, double-alkaline batteries) applications, or for rechargeable solutions where batteries are pluggable and can be charged independently. This device includes a button monitor and a sequencer.


The performance and advantages of MAX14720AEWA

Extend the battery life of the system

Micro-IQ 250mW up/down regulator

Input voltage: 1.8V to 5.5V

Programmable output voltage ranging from 2.5V to 5V

1.1μA static current

Programmable current limiting

Micro-IQ 200mA step-down regulator

Input voltage: 1.8V to 5.5V

Programmable output voltage from 1.0V to 2.0V

A static current of 0.9μA

Micro-IQ 100mA LDO

Input voltage: 1.71V to 5.5V

Programmable output voltage ranging from 0.9V to 4.0V

A static current of 0.9μA

Configurable as a load switch

Extend the shelf life of the product

Battery sealing mode (MAX14720

120nA battery current

On-resistance of the power switch

250mΩ (maximum value) @ 2.7V

500mΩ (maximum value) @ 1.8V

Battery impedance detector

Easy-to-implement system control

Configurable power mode and reset behavior (MAX14720)

Button detection, supporting ultra-low power consumption transportation mode

Disconnect all loads from the battery to reduce leakage to less than 1μA

Power-on reset (POR) delay and voltage sequencing

Independent enable pin (MAX14750)

Voltage monitor multiplexer

I2C control interface


In addition, the MAX14720AEWA features 25 solder balls, 0.4mm solder ball pitch, and a 2.26mm x 2.14mm wafer-level package (WLP), operating within an extended temperature range of -40°C to +85°C. This device is widely applied in the following fields:

Portable medical equipment

Wearable fitness equipment

Wearable medical devices
