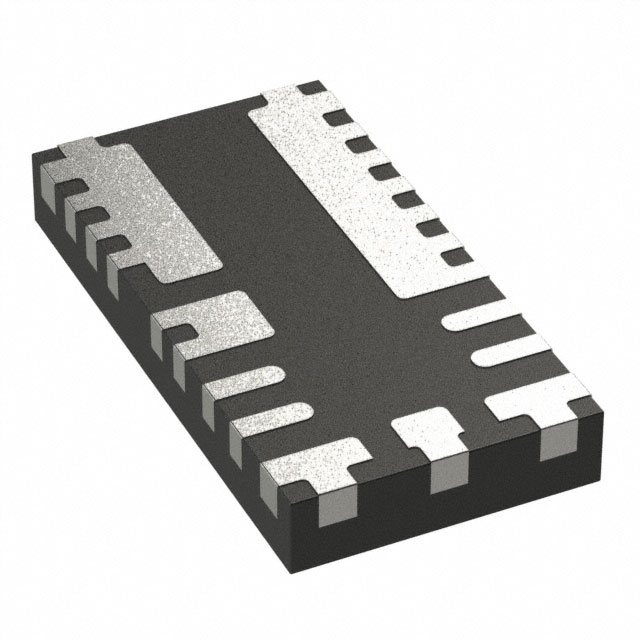

For picture reference, please see the specifications
< >

Commodity Model:MAX20801TPBB

Trade Name:Switching Regulators

Brand:Maxim

Particular Year:25+

Package:FCQFN-10

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX20801TPBB
Package
FCQFN-10
Describe
Step-down switching regulator Supports Maximum Power Point Tracking (MPPT) of battery string

Product Description

MAX20801TPBB is a ‌ photovoltaic string optimizer launched by (Maxim), mainly used to address the power loss issue caused by individual differences in photovoltaic strings. It enhances the overall energy harvesting efficiency through maximum power point tracking (MPPT) technology.


The additional unique advantages provided by the battery string optimizer include:

Alleviate the performance decline of PV modules during their service life

Avoid high losses associated with the conduction of bypass diodes

Limit the operating voltage of the PV module


In addition, compared with standard solar panels and those using module-level MPPT technology, the MAX20801TPBB has more outstanding reliability. This photovoltaic cell can only provide maximum power under specific electrical conditions, which vary significantly depending on the irradiance and temperature it is exposed to. Photovoltaic cells connected in series can be extremely sensitive due to cell mismatch, resulting in the inability to generate the optimal power and energy under actual conditions. The MAX20801TPBB battery cascade optimizer enables photovoltaic cells to achieve maximum total power under various load conditions.


Its main features and advantages

Perform MPPT on 20 to 24 series-connected PV cells

Fast MPPT responds quickly to changes in conditions

Integrated voltage-limiting clamping output voltage

Integrated current-limiting clamp output current

The active bypass function avoids diodes and hot spots

Supports panel electroluminescence (EL) testing

Peak efficiency of 99.1%, CEC 98.7% and Euro 98.3%


Basic parameters

Product: MAX20801TPBB

Type: Photovoltaic cell string optimizer

Package/Housing: 10-FCQFN
