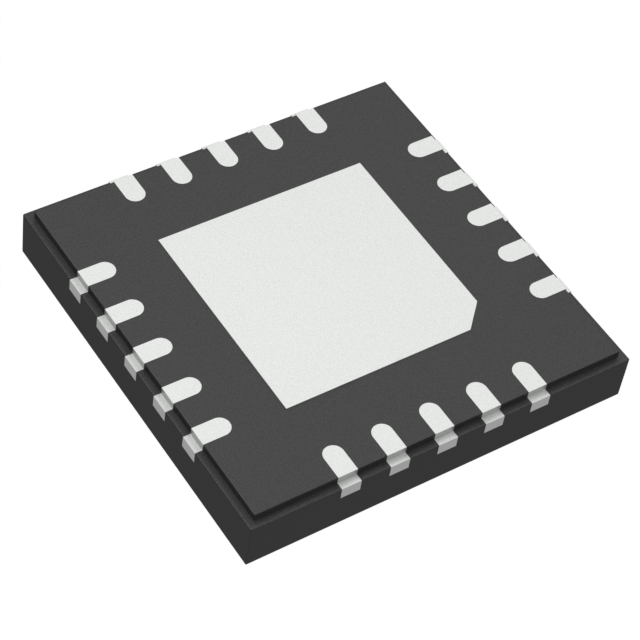

Commodity Model:MAX25249ATPAS

Trade Name:Switching Regulators

Brand:Maxim

Particular Year:25+

Package:TQFN-20

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX25249ATPAS
Package
TQFN-20
Describe
A four-output micro PMIC suitable for automotive camera applications

Product Description

The MAX25249ATPAS is a highly efficient, four-output PMIC that integrates three DC-DC converters and one high PSRR LDO. All outputs are equipped with OV/UV monitoring. OUT1 is a 1A, high-voltage, synchronous step-down converter, powered by coaxial cable or car battery. The OUT2 and OUT3 low-voltage, synchronous step-down converters, powered by OUT1, offer an output voltage range of 0.8V to 3.9875V. The OUT2 can provide a current of 1.2A and is suitable for megapixel cameras and high-speed serializers. OUT3 supplies 0.5A current to power the imager, serial converter and the auxiliary power rail of the MCU. OUT4 is a low-voltage, low-noise, high-PSRR LDO, suitable for the power supply of imagers.


The MAX25249ATPAS features a 2.2MHz fixed-frequency PWM mode, which enables better noise immunity and load transient response. High operating frequencies allow the use of all-ceramic capacitors, minimizing external components. Programmable spread spectrum modulation suppresses electromagnetic radiation to the greatest extent. Compared with the discrete solution, the integrated low-RDS (ON) switch significantly enhances efficiency under heavy loads and simplifies the circuit layout.


Performance parameters

Product: MAX25249ATPAS

Topology: Step-down synchronous (3), Linear (LDO) (1)

Output number: 4

Frequency - Switch: 2.2MHz

Voltage/current - output 1:5V, 1A

Voltage/current - output 2:0.8V to 3.9875V, 1.2A

Voltage/current - output: 3:0.8V to 3.9875V, 1.2A

With LED driver: None

With monitor: None

With sequencer: Yes

Voltage - Power supply: 5V to 36V

Operating temperature: -40°C to 125°C

Installation type: Surface mount, wettable side wing

Packaging/Housing: 20-WFQFN


Associated Products

Model

Brand

Package

Quantity

Describe

MAX25249ATPAA

Maxim

TQFN-20

3000

A four-output micro PMIC suitable for automotive camera applications
