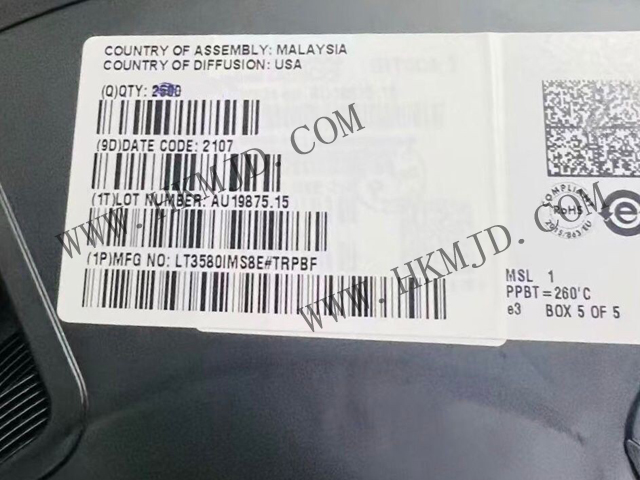

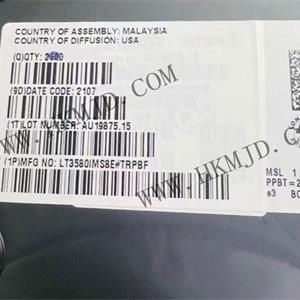

Commodity Model:LT3580IMS8E

Trade Name:Switching Regulator

Brand:ADI

Particular Year:21+

Package:MSOP-8

Delivery Date:New and Original

Stock: 14000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LT3580IMS8E
Package
MSOP-8
Describe
Boost/Buck DC/DC Converter with 2A Switch, Soft Start and Synchronous Function

Product Description

The LT3580IMS8E is a versatile DC-DC switching regulator in an MSOP-8 package, supporting boost, inverting, and SEPIC topologies, and is suitable for power supply designs with a wide input voltage range (2.5V to 32V). The chip integrates a 2A internal switch, features an adjustable switching frequency (200kHz to 2.5MHz), soft-start functionality, and synchronous clock input, enabling efficient generation of positive or negative output voltages (up to ±42V). It is widely used in industrial, communication, and consumer electronics applications.


LT3580IMS8E Core Parameters

Input voltage range: 2.5V to 32V

Output voltage range: Adjustable (up to 42V in boost mode, ±12V in inverting mode)

Output current: 2A (switching peak)

Switching frequency: 200kHz to 2.5MHz (adjustable/synchronous)

Efficiency: Typical 88% (at 12V output)

Operating temperature: -40°C to +125°C

Package: MSOP-8 (3×3mm)

Protection features: Soft-start, under-voltage lockout (UVLO)


LT3580IMS8E Features

Multi-topology support: Configurable as a boost, inverting, or SEPIC converter, flexibly adapting to different power supply architectures.

High integration: Built-in 2A MOSFET switch reduces the need for external components.

Low power design: Static current as low as 900μA, suitable for battery-powered devices.

Precise control: Output voltage set via a single resistor, supports external clock synchronization (200kHz to 2.5MHz).

Industrial-grade reliability: Complies with AEC-Q100 standards (select models), suitable for automotive electronics.


LT3580IMS8E Applications

VFD bias power supply

TFT-LCD bias power supply

GPS receiver

DSL modem

Local power supply

Associated Products

Model

Brand

Package

Quantity

Describe

LT8613EUDE

ADI

QFN-28

3000

42V, 6A synchronous buck regulator with 3μA quiescent current

MAX25249ATPAA

Maxim

TQFN-20

3000

A four-output micro PMIC suitable for automotive camera applications

MAX25249ATPAS

Maxim

TQFN-20

3000

A four-output micro PMIC suitable for automotive camera applications

MAX14720AEWA

Maxim

WLP-25

2500

PMIC - Switching Regulator IC REG TRIPLE BUCK/BST/LNR 25WLP

MAX20801TPBB

Maxim

FCQFN-10

2000

Step-down switching regulator Supports Maximum Power Point Tracking (MPPT) of battery string

LT3502AEDC

ADI

DFN-8

12500

A 2.2MHz, 500mA buck regulator in a 2mm x 2mm DFN package

MAX17509ATJ

Maxim

TQFN-32

3000

4.5V - 16V, dual-channel 3A output, high-efficiency, synchronous step-down DC-DC converter

MPQ4242BGVE-0021-AEC1

MPS

QFN-22

2500

5A, 36V, fully integrated USB PD solution with integrated buck-boost converter

MPQ4242GVE-0000-AEC1

MPS

QFN-22

2500

5A, 36V, fully integrated USB PD solution with integrated buck-boost converter

MAX1556ETB

Maxim

TDFN-10

5000

Switching Regulator 16µA IQ, 1.2A PWM Step-Down DC-DC Converters
