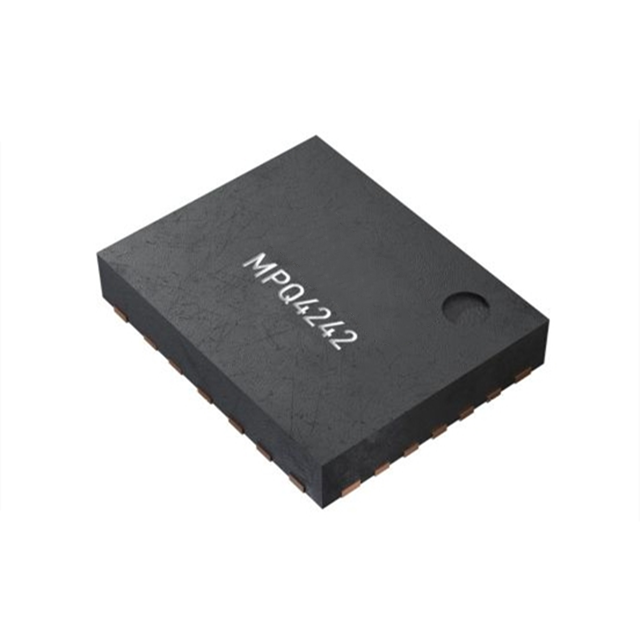

For picture reference, please see the specifications
< >

Commodity Model:MPQ4242GVE-0000-AEC1

Trade Name:Switching Regulators

Brand:MPS

Particular Year:25+

Package:QFN-22

Delivery Date:New and original

Stock: 2500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
MPS
Model
MPQ4242GVE-0000-AEC1
Package
QFN-22
Describe
5A, 36V, fully integrated USB PD solution with integrated buck-boost converter

Product Description

The MPQ4242GVE-0000-AEC1 is a fully integrated Power supply (PD) solution for USB Type-C power ports. It integrates a buck-boost converter with four power switches and a USB PD controller. This device can support a continuous output current (IOUT) of up to 5A within a certain input power supply voltage range.


The USB Type-C port of MPQ4242GVE-0000-AEC1 supports USB PD R3.0 with programmable power Supply (PPS). And it is backward compatible with the dedicated charging port (DCP) solutions of the battery charging specification (BC 1.2), 3A divider mode and 1.2V/1.2V mode. This device also supports QC 2.0/3.0 and Huawei FCP mode.

Technical Specification

Application: Converter, USB

Voltage - Input: 4.8V to 36V

Output number: 1

Voltage - Output: 3.3V to 22.5V

Operating temperature: -40°C to 150°C (TJ)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount, wettable side wings

Package/Shell: 22-PowerVFQFN


Application

• USB power supply charging port

USB power supply
