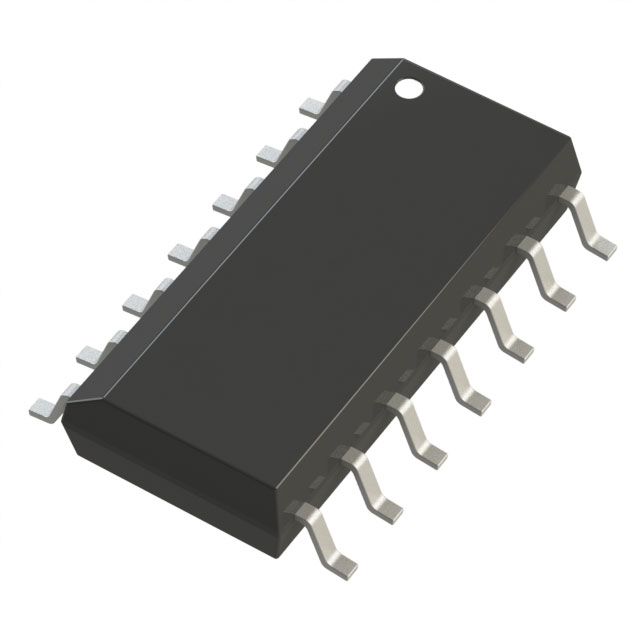

For picture reference, please see the specifications
< >

Commodity Model:MAX5717GSD

Trade Name:Digital to Analog Converters (DAC)

Brand:Maxim

Particular Year:25+

Package:SOIC-14

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX5717GSD
Package
SOIC-14
Describe
Single-channel, buffer-free, 16-bit digital-to-analog converter (DAC) 14-SOIC

Product Description

The MAX5717GSD is a 16-bit voltage output digital-to-analog converter (DAC) launched by Maxim, featuring high precision and stability. It is suitable for applications in industrial control, communication systems, and other fields. The MAX5717GSD has the following core features:

16-bit resolution

±4 LSB INL (maximum, 16 bits)

±0.5 LSB DNL (maximum, 16 bits)

750ns setup time (typical value)

0.05 nV-s peak pulse energy

Output noise density of 6 nv/√Hz

Integrated ±0.025% (maximum) bipolar setting resistor

Power supply range: 4.5V to 5.5V

4.0V to VDD reference input range

When powered on, the DAC output is reset to zero (unipolar), enhancing safety

50MHz 3SPI interface

Operating temperature range: -40°C to +105°C

SO-14 package


When powered on, the output resets to zero, providing higher safety performance for driving valves or other applications where the transmitter needs to be turned off upon power-on. The MAX5717GSD output is stable at 750ns, with ± 0.1ppm /°C low offset and gain drift throughout the FSR.


Application scenarios

Automatic testing equipment

Automatic tuning

Communication system

Data acquisition system

Gain and offset regulation

Portable instrument

Process control and servo loop

Programmable voltage and current source

Testing and measuring equipment
