The MAX17509ATJ is a dual 3A high-efficiency synchronous step-down DC-DC converter with 4.5V to 16V input voltage range ‌ that supports resistor programming. This device can be configured as two independent 3A power supplies or one dual-phase 6A power supply. Output voltage is adjustable within the range of 0.904V to 3.782V and 4.756V to 5.048V with an accuracy of ±2%‌.

Technical parameters

Function: Lower blood pressure

Output configuration: Positive

Topology: Voltage reduction

Output type: Adjustable

Output number: 2

Voltage - Input (minimum) : 4.5V

Voltage - Input (maximum value) : 16V

Voltage - Output (minimum value/fixed) : 0.904V, 4.756V

Voltage - Output (maximum value) : 3.782V, 5.048V

Current - Output: 3A

Frequency - Switch: 500kHz, 1MHz, 1.5MHz, 2MHz

Synchronous rectifier: None

Operating temperature: -40°C to 125°C (TA)

Installation type: Surface mount type

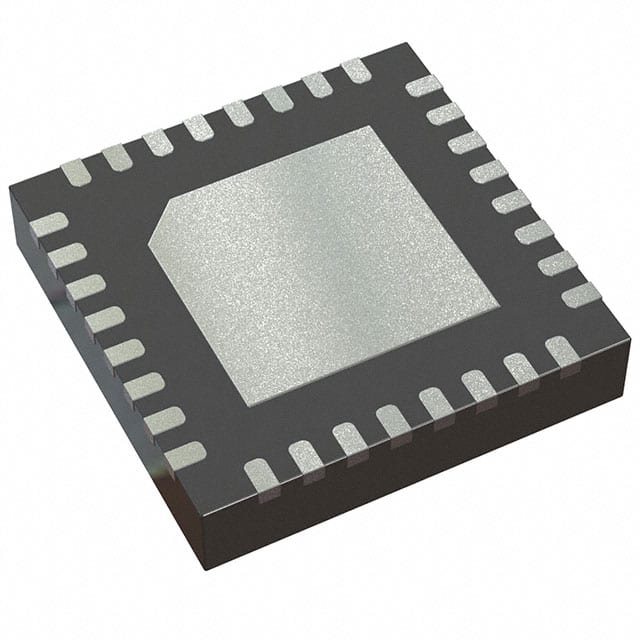

Package/Shell: 32-WFQFN

Application scenarios

The MAX17509ATJ is suitable for a variety of power management applications, including but not limited to:

Base station load point voltage stabilizer

Core power supplies for FPGA and DSP

Industrial control equipment

Multi-point of Load (POL) power supply
