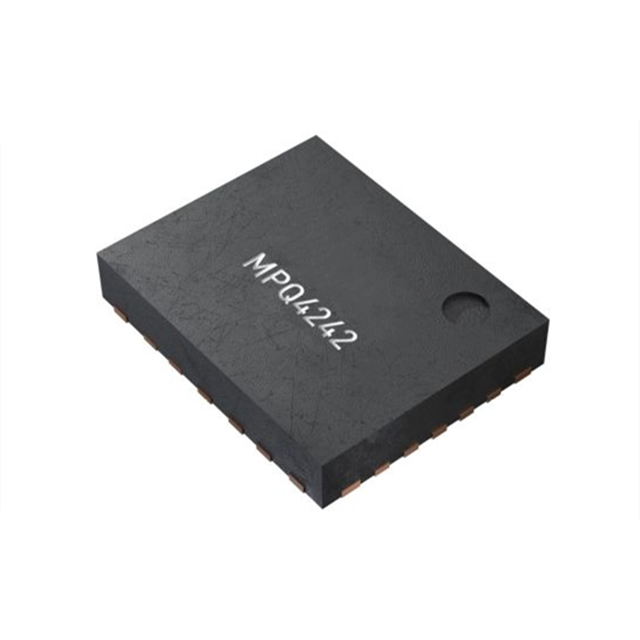

The MPQ4242BGVE-0021-AEC1 device is a fully integrated power supply (PD) solution suitable for the USB Type-C power supply port. It integrates a buck-boost converter with four power switches and a USB PD controller. This device can support a continuous output current (IOUT) of up to 5A within a certain input power supply voltage range.

MPQ4242BGVE-0021-AEC1 has the following main features and advantages:

An integrated USB power supply (PD) solution suitable for automotive power ports

Integrated 4-switch buck-boost converter

Integrate PD 3.0 controller

Wide input operating voltage (VIN) range from 4.8V to 36V

Output voltage range (VOUT) from 3.3V to 22.5V

Precise output CC current limit: ±5%

The external MOSFET (HS-FET) can operate in parallel

The USB Type-C has a low quiescent current (IQ) when disconnected.

Configurable frequencies of 250kHz/420kHz, with spectrum expansion function

Support USB Type-C V2.0

Supports USB PD R3.0, V2.0 and programmable power (PPS) with a list of 7 power data objects (PDO)

Support QC 3.0 specification and Huawei FCP

Support DCP schemes for BC1.2, 3A Divider mode and 1.2V/1.2V mode

Short-circuit protection of VBUS/VBATT by CCx, DP and DM

Battery to ground short-circuit protection driver

I2C slave interface

Output line voltage drop compensation

Configurable PD power management is available to handle low battery voltage or high temperature conditions

Support dual-port PD power sharing

An LED driver with adjustable pulse width modulation (PWM) duty cycle

The closing delay of EN can be as long as 120 minutes

It adopts the QFN-22 (4mmx5mm) package with tin plating on the side

It complies with the AEC-Q100 level 1 certification

Typical applications

• USB power supply charging port

• USB power supply
