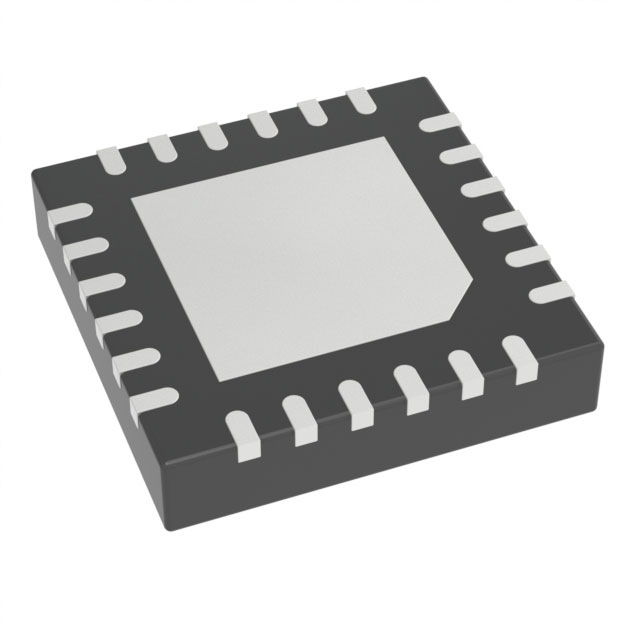

The ADP5135ACPZ integrates three high-performance step-down regulators. It adopts a 24-pin, 4 mm x 4 mm LFCSP package. The high switching frequency of this step-down regulator supports small multi-layer external devices and reduces the circuit board space to a smaller extent. When the MODE pin is set to high, the ADP5135ACPZ operates in forced PWM mode. When the MODE pin is set to low level, if the load exceeds the predefined threshold, the step-down regulator operates in PWM mode. When the load current drops below the predefined threshold, the step-down regulator operates in power-saving mode (PSM) to improve the efficiency of light loads.

The main features of ADP5135ACPZ include:

Main input voltage range: 3.0V to 5.5V

Three 1800 mA step-down regulators

24-pin, 4 mm x 4 mm LFCSP package

Regulator accuracy: ±1.8%

Factory programming Settings or externally adjustable VOUTx

Precise enable pins make power timing simpler

Good power supply pins for monitoring each voltage regulator

It operates at a voltage reduction of 3 MHz and supports forced PWM mode and automatic PWM/PSM mode

BUCK1/BUCK2/BUCK3: Output voltage range 0.8V to 3.8V

Application scenarios

The ADP5135ACPZ-R7 is applicable to various scenarios that require efficient power management, including:

Power supplies suitable for processors, ASics, FPgas and RF chipsets

Portable instruments, meters and medical equipment

Space-constrained equipment
