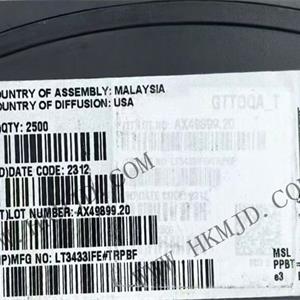

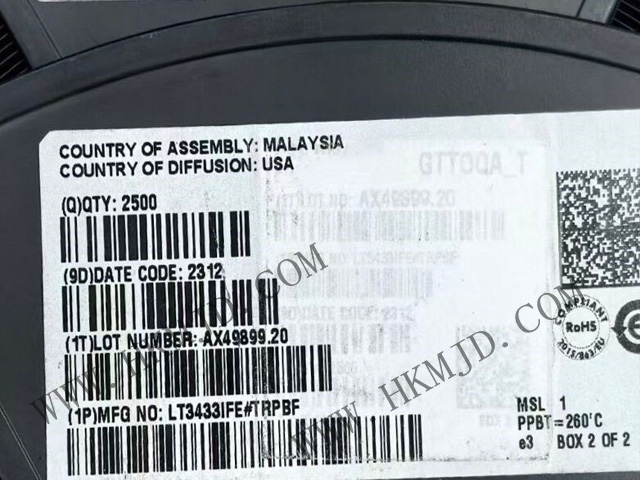

For picture reference, please see the specifications
< >

Commodity Model:LT3433IFE

Trade Name:Buck Regulator

Brand:ADI

Particular Year:23+

Package:TSSOP-16

Delivery Date:New and Original

Stock: 2500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LT3433IFE
Package
TSSOP-16
Describe
42V, 2.5A synchronous buck regulator with 2.5μA quiescent current

Product Description

The LT3433IFE is a 200kHz fixed-frequency current-mode switching regulator that can provide both boost and buck regulation using a single inductor. The IC operates over an input voltage range of 4V to 60V, making it suitable for a wide variety of applications requiring a broad input voltage range, such as automotive electronics that must withstand load dump and cold start conditions.


Internal control circuits monitor system conditions and seamlessly switch between ‘buck’ and ‘boost’ voltage conversion by transitioning from single-switch buck operation to dual-switch bridge operation when necessary.


Optional Burst Mode® operation reduces no-load quiescent current to 100μA and maintains high efficiency at light loads.


Current limit foldback and frequency foldback help prevent inductor current from becoming uncontrolled during startup. Programmable soft-start helps avoid output overshoot during startup.


The LT3433IFE is available in a 16-pin thermally enhanced TSSOP package.


LT3433IFE Product Features

Automatic boost and buck conversion

Single inductor configuration

Wide input voltage range from 4V to 60V

VOUT range from 3.3V to 20V

Dual internal 500mA switches

100μA no-load quiescent current

Low-current shutdown mode

±1% output voltage accuracy

200kHz operating frequency

Boost power pin for saturating the high-side switch

Frequency foldback protection

Current limit foldback protection

Current limit unaffected by duty cycle

16-pin thermally enhanced TSSOP package


LT3433IFE Product Attributes

Product Type: Switching Regulator

Package/Case: TSSOP-16

Topology: Boost, Buck

Output Voltage: 3.3 V to 20 V

Output Current: 400 mA

Number of Outputs: 1 Output

Input Voltage - Minimum: 4 V

Input Voltage - Maximum:    60 V

Quiescent Current:    100 uA

Switching Frequency:    200 kHz

Minimum Operating Temperature:    -40°C

Maximum Operating Temperature:    +125°C

Series:    LT3433

Input Voltage:    4 V to 60 V

Operating Supply Current:    100 uA


LT3433IFE Product Applications

12V automotive systems

Wall adapter-powered systems

Battery power voltage buffering
