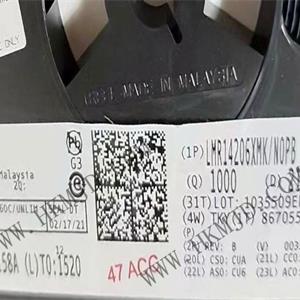

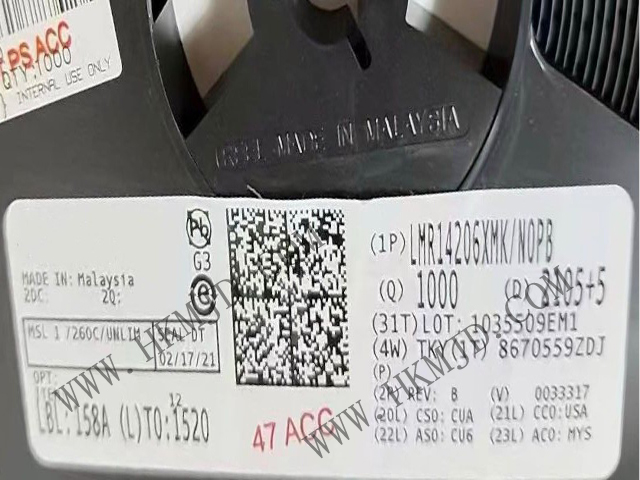

LMR14206XMK: 4.5V to 42V, 0.6A, Step-Down DC/DC Switching Regulator

Product Details:

Model: LMR14206XMK

Package: SOT-23-6

Type: SIMPLE SWITCHER Buck Regulator

Overview:

The LMR14206XMK is a PWM DC/DC buck (step-down) regulator. Its wide input voltage range from 4.5V to 42V makes it suitable for various applications, such as power conditioning from unregulated sources. The LMR14206XMK employs an internal switch with low RDSON (typically 0.9Ω) to achieve maximum efficiency (typically 85%). The fixed operating frequency of 1.25 MHz permits the use of small external components while maintaining low output voltage ripple. Soft-start is implemented via the shutdown pin and an external RC circuit, allowing users to customise the soft-start time for specific applications.

LMR14206XMK Product Features:

Input voltage range: 4.5V to 42V

Output voltage range: 0.765V to 34V

Output current up to 0.6A

1.25 MHz switching frequency

Low quiescent current (Iq), typical 16 µA

Short-circuit protection

Internal compensation

Soft-start functionality

Ultra-thin 6-pin SOT package (2.97 x 1.65 x 1mm)

Fully supported by WEBENCH® Power Designer

LMR14206XMK Applications:

Point-of-load conversion from 5V, 12V and 24V rails

Space-constrained applications

Battery-powered devices

Industrial distributed power applications

Energy meters

Portable handheld instruments
