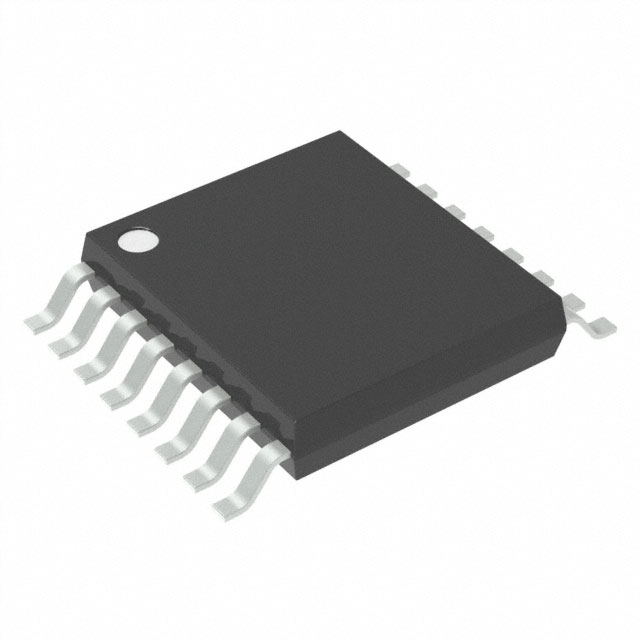

The ADP5310AREZN-2.8 adopts a 16-pin TSSOP_EP package, integrating two step-down regulators and one load switch, which can meet the strict performance and circuit board space requirements. This device can be directly connected to a wide input voltage range of 2.7V to 15.0V, allowing it to be powered by multiple alkaline /NiMH batteries or lithium batteries, as well as other power sources.

The ADP5310AREZN-2.8 mainly has the following main features:

Wide input voltage range: 2.7V to 15.0V

Static current: 700 nA (when EN1 = SYNC/MODE = low)

Output accuracy: ±1.5% (throughout the entire temperature range in PWM mode)

The switching frequency is 600 kHz (or 1.2 MHz), and the optional synchronous input range is 400 kHz to 1.4 MHz

Channel 1:800mA step-down regulator

Automatic PSM/PWM or forced PWM mode is provided through the factory fuse

100% duty cycle working mode

Adjustable/fixed output options are provided through factory fuses

Good power indication

Channel 2: Ultra-low power step-down regulator

Optional hysteresis or PWM working modes are available

The output current can reach up to 50 mA (in hysteresis mode) and 300 mA (in PWM mode), and operates in 100% duty cycle mode

Low noise (0.8V reference voltage source, in PWM mode)

Adjustable/fixed output voltage options are provided through factory fuses

Channel 3: High-end load switch

Low RDS(ON) (494 mΩ, when VOUT3 = 2.5 V)

Fast Output Discharge (QOD) option

UVLO, OCP and TSD protection

16-pin TSSOP_EP package

Operating junction temperature range: -40°C to +125°C

Application scenarios

Energy (gas and water) measurement

Portable and battery-powered devices

Medical application

"Maintain effective" power supply
