Service Telephone:86-755-83294757
Trade Name:Buck Regulator
Brand:Maxim
Particular Year:25+

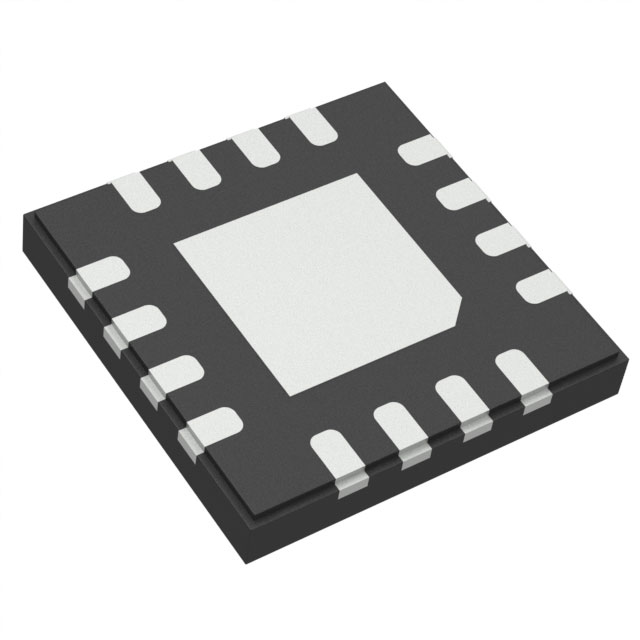

Package:TQFN-16
Delivery Date:New and original
Stock: 2000pcs
The MAX20049ATEF is the industry's smallest PMIC for ADAS applications. It is a dual-channel step-down converter IC with two low dropout regulators (Ldos), providing a single-chip solution for automotive cameras. The two step-down converters are designed to operate in fixed-frequency PWM mode. The input voltage of the MAX20049ATEF ranges from 5V to 17V, and the dedicated high-voltage input allows for flexible solutions.
The MAX20049ATEF has the following main features:
Smaller scheme size
16-pin, side-wettable (3mm x 3mm) TQFN package with bare pads
Low on-time architecture, no need for cascading Buck converters
It has a wide transmission voltage range of 4V to 17V and supports power supply via coaxial cable
Fixed output voltage option
Reduce EMI
Spread spectrum modulation options
The pin arrangement allows for a compact PCB layout of switch nodes
Self-protection and high reliability
Overvoltage and undervoltage monitoring, overvoltage protection, thermal shutdown and short-circuit protection
500mV input hysteresis, supporting low-cost, long-cable transmission under low-speed start-up conditions
Support automotive applications
Automotive-grade temperature range
AEC-Q100 certification
Application scenarios
Camera module - Panoramic, rear, and front cameras
Load point
