The ADP5310AREZN-255 is a 3-channel, integrated ultra-low power solution with a dual-channel black regulator and load switch produced by (ADI). The ADP5310AREZN-255 can be directly connected to a wide input voltage range of 2.7V to 15.0V, allowing it to be powered by multiple alkaline /NiMH batteries or lithium batteries as well as other power sources. The important safety features of this device include overcurrent protection (OCP), thermal shutdown (TSD), and input undervoltage lockout (UVLO). The rated junction temperature range of ADP5310AREZN-255 is from -40 °C to +125°C.

Performance parameters

Function: Lower blood pressure

Output configuration: Positive

Topology: Voltage reduction

Output type: Adjustable (Fixed)

Output number: 3

Voltage - Input (minimum) : 2.7V

Voltage - Input (maximum value) : 15V

Voltage - Output (minimum/Fixed) : 0.8V (2.55V)

Voltage - Output (maximum value) : 5V

Current - Output: 50mA, 300mA, 800mA

Frequency - Switch: 400kHz to 1.4MHz

Synchronous rectifier: Yes

Operating temperature: -40°C to 125°C (TJ)

Installation type: Surface mount type

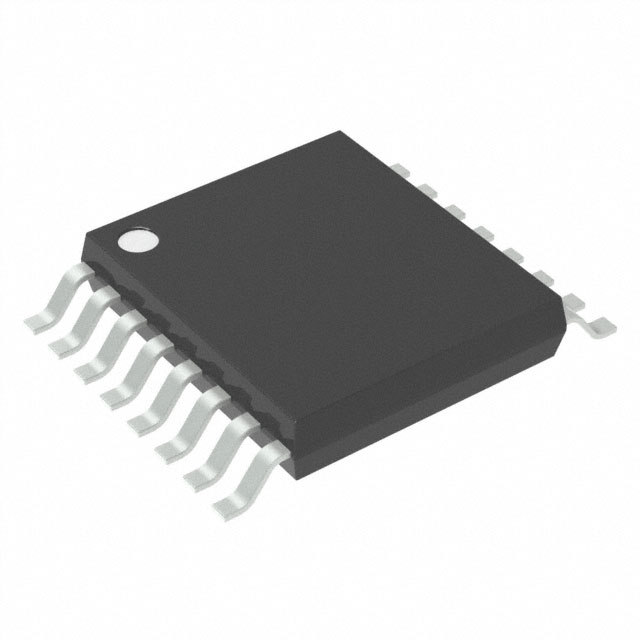

Package/Shell: 16-TSSOP

Besides. ADP5310AREZN-255 is widely used in the following fields, mainly including:

Energy (gas and water) measurement

Portable and battery-powered devices

Medical application

"Maintain effective" power supply
