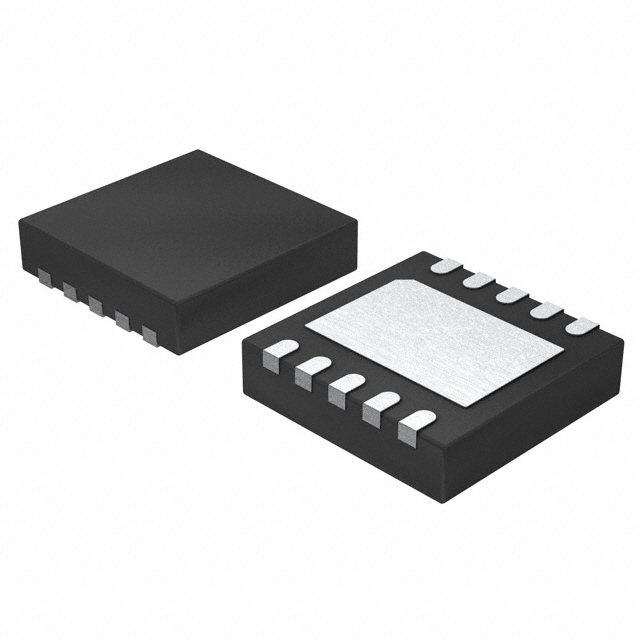

The ADP2230ACPZ is an integrated device featuring two high-efficiency, low static current, 800 mA, step-down, DC-DC converters. It is available in a small 10-pin 3 mm × 3 mm LFCSP package. The entire solution only requires five small external components. When the ADP2230ACPZ uses three 0603 capacitors and two 2mm × 2mm inductors, the total solution area is approximately 48mm ², making it the smallest size solution to meet the requirements of various portable applications.

In addition, the ADP2230ACPZ step-down regulator adopts a proprietary high-speed current mode and constant-frequency PWM control scheme, featuring outstanding stability and transient response. To reduce the input current ripple, the step-down output operates in a phase-out mode. To ensure the longest battery life for portable applications, the ADP2230ACPZ offers a variable-frequency power-saving mode, which can reduce the switching frequency under low load conditions.

The main features of ADP2230ACPZ include:

Input voltage range: 2.3V to 6.5V

Fixed and adjustable output voltage options: Fixed output voltage pair options: 1.2V / 1.8V, 1.2V / 3.3V, 1.8V / 3.3V

Adjustable output voltage range: 0.8V to 6V

Minimum guaranteed continuous output current: 800 mA

The efficiency is as high as 94%.

Under the power-saving mode (PSM), the two channels have A low quiescent current characteristic of 15 μA

Low turn-off current: 0.1 μA (typical value)

For low-pressure differential operation, the duty cycle is 100%

Application field

Portable and battery-powered devices

Automatic Meter Reader (WSN)

POS devices and transaction processing devices

Mobile phone

Digital cameras and audio equipment

Medical instruments

Medium-format tablet computer
