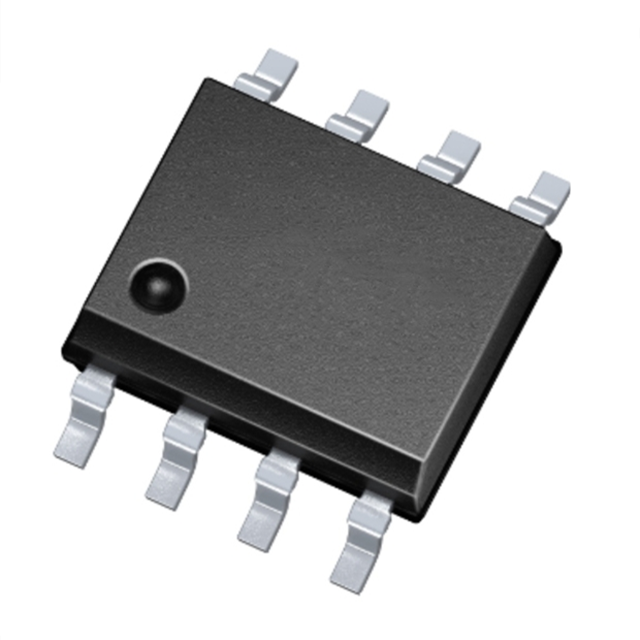

For picture reference, please see the specifications
< >

Commodity Model:2EDL05I06PF

Trade Name:Gate Drivers

Brand:INFINEON

Particular Year:25+

Package:PG-DSO-8

Delivery Date:New and original

Stock: 2500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
2EDL05I06PF
Package
PG-DSO-8
Describe
600 V half-bridge gate driver IC with integrated bootstrap diode

Product Description

The 2EDL05I06PF is a 600V half-bridge gate driver IC using LS-SOI technology designed to control power devices such as IGBTs and MOSFETS ‌. Its main functional features include:

Both outputs have separate control circuits

Under-voltage filtering detection

All inputs are clamped by diodes

Offline gate clamping function

Asymmetric undervoltage locking thresholds are suitable for high and low sides

When using SOI technology, the insensitivity of the bridge output to a high negative transient voltage can be as high as -50V

Ultrafast bootstrap diode


These features enable the 2EDL05I06PF to perform well in a variety of application scenarios, including:

Household appliances

Induction heating

Motor control and drive

Uninterruptible Power Supply (UPS

Solar energy system solutions

Industrial heating and welding

3D printer

Electric tools
