Trade Name:Gate Driver
Brand:INFINEON
Particular Year:25+
Package:PG-DSO-20
Delivery Date:New and Original
Stock: 2000pcs

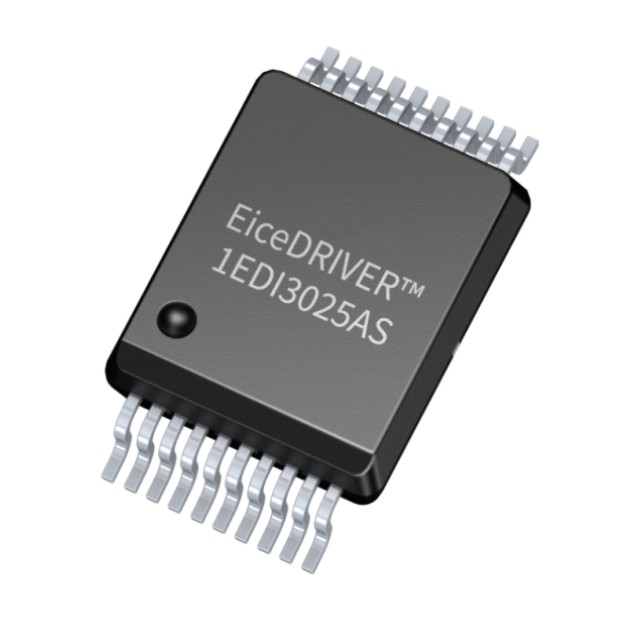

The EiceDRIVER™ gate driver 1EDI3025AS is a high-voltage IGBT driver designed specifically for automotive applications, featuring core-less transformer (CT) technology to achieve 8 kV electrical isolation. The driver features a robust output stage capable of delivering up to 20 A peak current, making it suitable for high-power switching applications. Its discrete output stage allows for different rise/fall times for switch turn-on and turn-off via independent gate resistors, and includes DESAT protection functionality.
Feature Description — 1EDI3025AS
Suitable for IGBTs with voltage ratings up to 1200 V
CMTI up to 150 V/ns
8 kV peak reinforced isolation (DIN VDE)
Integrated boost circuit (up to 20 A peak)
Integrated active Miller clamping
12-bit ADC
Discrete output TON and TOFF
DESAT protection
Configuration of external soft shutdown function
Safety inputs on both sides
Compliant with ISO 26262 SEooC standard (safety requirements up to ASIL B)
Technical specifications — 1EDI3025AS
Operating voltage range: 12 V to 1200 V (for IGBT)
Output current: 20 A peak
Isolation voltage: 8kV
CMTI: 150V/ns
Operating temperature range: -40°C to +125°C
Package size: PG-DSO-20
Advantages — 1EDI3025AS
Pre-configured to drive the latest IGBT technology
Safety documentation to assist system safety design
Comprehensive safety features
Supports system-level ASIL D
Compliant with AEC-Q100 standard
Compact package (DSO-20)
Potential applications — 1EDI3025AS
Traction inverters
Auxiliary inverters
High-voltage to low-voltage DC-DC converters
Fuel cell compressors
EESM (External Excitation Synchronous Motor)
