The CY8C4146LWE-HVS015 automotive microcontroller (MCU) belongs to the PSOC 4 HV mixed-signal (MS) series. This MCU is a combination of a microcontroller and a 12-bit SAR ADC, as well as a fifth-generation multi-sensor converter (MSC) module that supports capacitive sensing (CAPSENSE™).

The PSOC™ 4 HV MS-64K/128K MCU adopts the Arm Cortex®-M0+ processor, which has programmable and reconfigurable analog and digital blocks. The CY8C4146LWE-HVS015 MCU supports ASIL-B functional safety, complies with the ISO 26262 standard, and has passed the AEC-Q100 certification.

Core parameters

Core processor: ARM® Cortex®-M0+

Kernel specification: 32-bit

Speed: 48MHz

Connection capabilities: I2C, LINbus, SPI, UART/USART

Peripherals: Undervoltage detection/reset, capacitive sensing, DMA, POR, PWM, WDT

I/O number: 41

Program storage capacity: 64KB (64K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 8K x 8

Voltage - Power supply (Vcc/Vdd) : 2.7V to 5.15V

Data converter: A/D 16x12b SAR

Oscillator type: Internal

Operating temperature: -40°C to 125°C (TA)

Grade: Automotive grade

Qualification: AEC-Q100

Installation type: Surface mount, wettable side wing

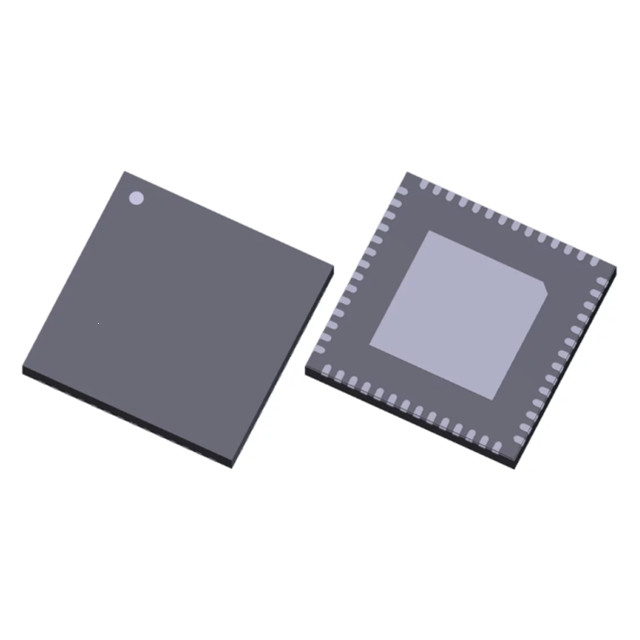

Device package: 56-WQFN (8x8)

Application scenarios

The CY8C4146LWE-HVS015 microcontroller is suitable for applications such as PTC heaters, liquid level sensing, automotive access control, automotive human-machine interfaces, and Wheatstone bridge sensors.
